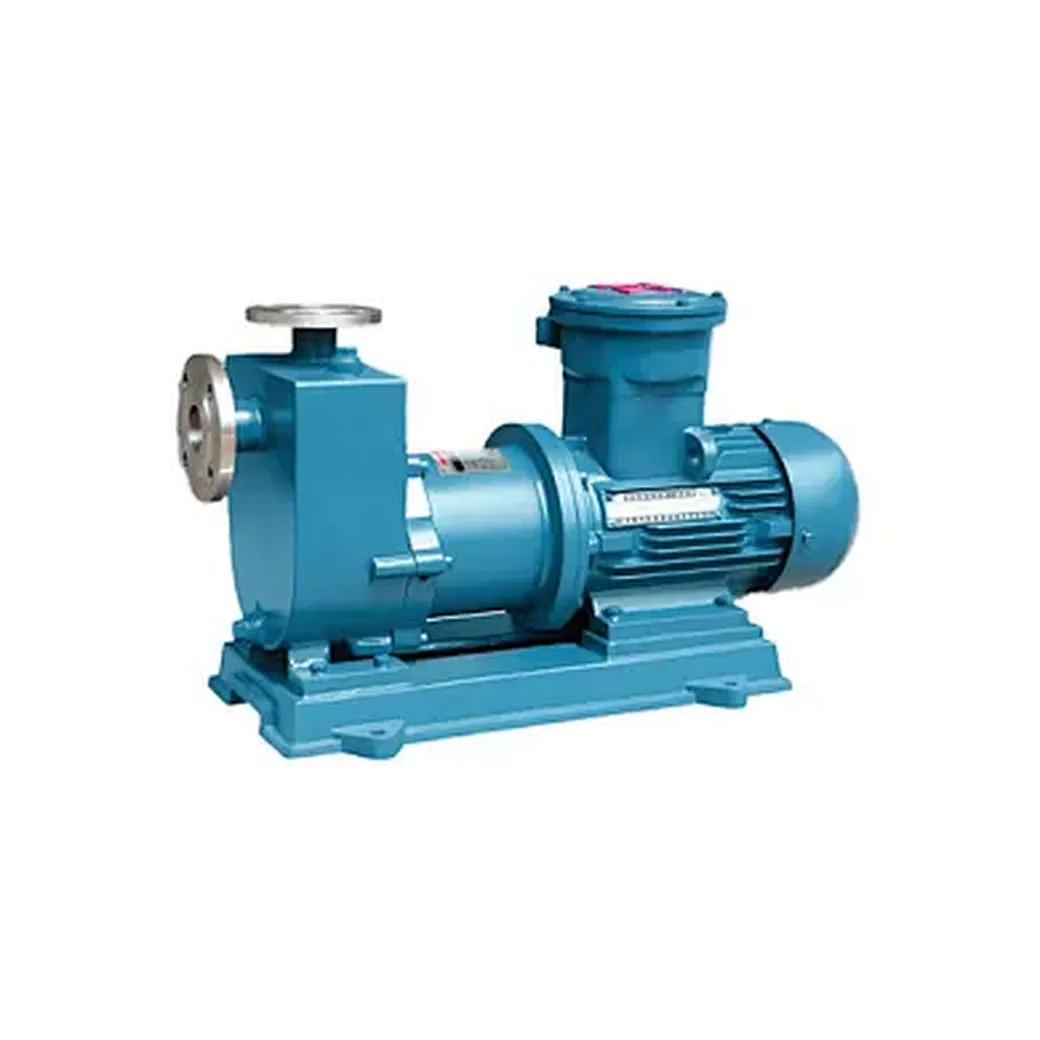

DN20-DN100 Self Priming Magnetic Force Driving Pump

Model NO. PWSZCQ

Flow Range：110-1500 L/min
Head Range：15-32 m
Motor Power：1.1-22 kW
Inlet/Outlet Range： DN20-DN100

Quantity

The ZCQ self priming pump water solution seamlessly integrates self-priming capabilities with advanced magnetic drive technology. By utilizing a high-performance magnetic coupling, this magnetic drive water pump ensures a completely leak-proof seal and robust suction performance, making it an ideal solution for transferring a wide range of challenging fluids.
Whether used in chemical processing or industrial circulation, this magnetic water pump provides a secure, maintenance-free operation by eliminating traditional mechanical seals. This PWS-developed technology guarantees long-term reliability and environmental safety for demanding fluid handling tasks.

Pump Features

Compact Structure and Reasonable Design

External hybrid axial return water pump body structure: composed of suction chamber, storage chamber, volute shell, reflux hole, gas-liquid separation chamber and other parts, compact structure, beautiful appearance, small volume, and low noise.
Easy installation: No need for foot fixation, suitable for various installation environments.

Reliable Operation and Convenient Use

Static seal replaces dynamic seal: it completely seals the flow components of the pump, completely solving the leakage problem that mechanical seals cannot avoid.
Instant opening and extraction: No need to pour water, easy and convenient, improving work efficiency.

Pump Advantages

Leak Free Sealing Technology

Magnetic coupling transmission: Power is transmitted through magnetic force without the need for mechanical seals, completely eliminating the phenomenon of"running, emitting, dripping, and leaking". It is suitable for transporting flammable, explosive, toxic, or valuable liquids.
Environmental protection and safety: To prevent medium leakage from causing harm to the environment and personnel, and to comply with strict environmental protection requirements.

Strong Self-Priming Ability

No need to pump: When the pump starts, it automatically exhausts the suction tube and the air inside the pump chamber, achieving self-priming without the need for manual pump filling or installation of bottom valves.
Large self-priming height: The self-priming height can reach 4 meters, suitable for low-level water sources or deep well suction.

Pump Application Scenarios

Chemical Industry

Transport corrosive liquids such as acids, alkalis, and organic solvents to avoid leakage and harm to the environment and equipment.
Suitable for special working conditions such as liquid circulation and vacuum suction in chemical production.

Pharmaceutical Industry

Transport highly pure solutions, medicines, preparations, etc. to ensure the safety and quality of the pharmaceutical process.
The leak free feature avoids the introduction of external impurities and ensures the purity of the product.

Petroleum and Electroplating Industry

Transporting oils, rare and valuable liquids, venom, volatile liquids, etc., meeting strict sealing requirements.
Suitable for scenarios such as electroplating solutions and supporting circulating water equipment.

Service Assurance

Precise Demand Matching

Free on-site condition assessment with customized solutions (flow rate, head, and piping configurations precisely tailored to operational needs).

Rapid Delivery Response

Standardized modular design shortens delivery cycles by 30%, with priority processing for emergency project requirements.

Flexible Warranty Policy

1-year warranty for the entire machine, extended to 2 years for non-standard customized components, complemented by scheduled proactive maintenance and a 2-hour fault response guarantee.

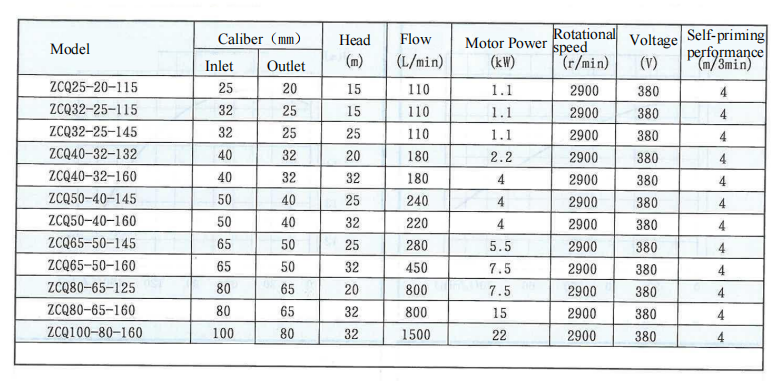

PWS Self Priming Magnetic Force Driving Pump is an advanced magnetic water pump that combines sealless magnetic drive technology with superior self-priming capabilities, delivering leak-proof and maintenance-free fluid transfer. Engineered for rapid dry-run priming and efficient performance, this pump features corrosion-resistant construction with stainless steel or engineered plastic wetted components, making it ideal for handling pure or aggressive liquids in chemical, electroplating, and photovoltaic applications.The following are specific specification parameters.

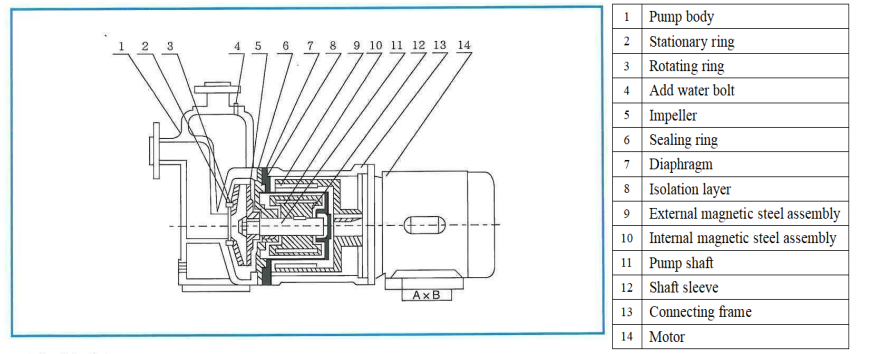

The PWS Magnetic Water Pump adopts a modular design, and its core components include an efficient self-priming device with a double volute structure, which is matched with a specially designed impeller to achieve rapid exhaust; The innovative magnetic coupling system consists of a rare earth permanent magnet outer rotor and an isolation sleeve, achieving completely leak free transmission; The overcurrent components are made of 316L stainless steel or silicon carbide material to ensure corrosion resistance; Standard IE4 ultra-high efficiency motor, integrated temperature sensor and vibration monitoring module, achieving intelligent operation protection. Each component has undergone precise dynamic balancing testing to ensure that this magnetic water pump maintains excellent stability and energy efficiency performance during long-term operation, making it particularly suitable for hazardous chemical transportation scenarios that require zero leakage.

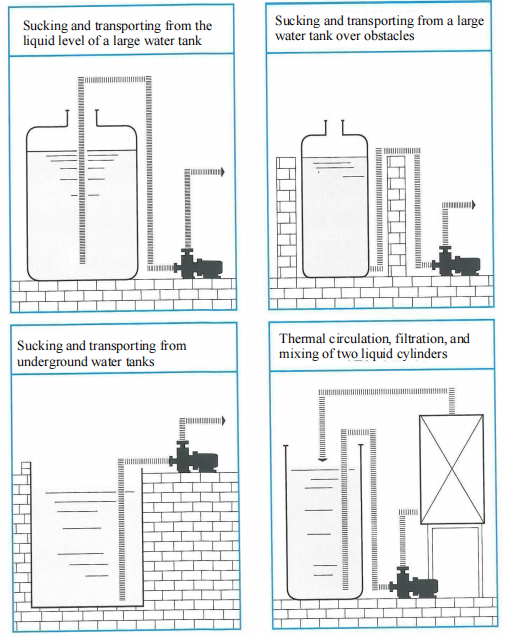

The installation process of the Self Priming Magnetic Force Driving Pump must strictly follow the specifications to ensure its efficient and stable operation as a magnetic water pump in the self priming pump water scenario. Before installation, it is necessary to check the levelness of the foundation, ensure the coaxiality between the pump body and the motor, and avoid vibration; The import and export pipelines should avoid sharp bends or being too thin, and it is recommended to install flexible joints to reduce stress transmission. In addition, suitable sealing materials (such as fluororubber, PTFE, etc.) should be selected according to the characteristics of the medium, and the flexibility of pipeline valve opening and closing should be ensured to prevent siphon or air resistance phenomena. After installation, a trial run is required to check the motor's rotation, vibration, and leakage. Only after confirmation can it be put into formal use.

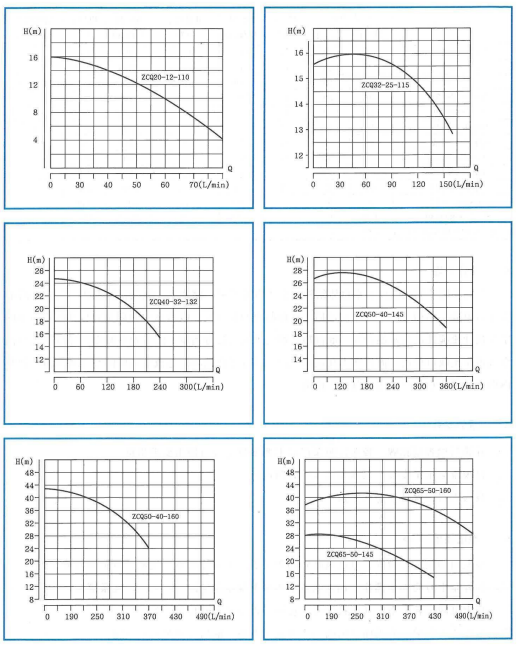

As an efficient magnetic water pump, the performance curve of the Self Priming Magnetic Force Driving Pump is a key tool for evaluating its self priming pump water capacity and operating efficiency. The performance curve graph usually displays the relationship between flow rate and head , intuitively reflecting the performance of the pump under different operating conditions. Under self-priming conditions, the pump can maintain stable flow output within a certain range of head, and as the self-priming height increases, the head gradually decreases, but the flow rate changes relatively steadily, reflecting its excellent self-priming performance.
