DN50-DN250 Sealless Self-Control Self-Imbibe Pump

Model NO. PWSWFB

Flow Range：7.5-750 m³/h
Head Range：11-202 m
Motor Power：3-132 kw
Inlet/Outlet Range：DN50-DN250

Quantity

Sealless Self-Control Self-Imbibe Pump

WFB unsealed self-priming pumps have become an ideal choice in the fields of chemical engineering, environmental protection, fire protection, etc. due to their leak free sealing technology, strong self-priming ability, high efficiency and energy saving, and vertical structure. As a seal pump, it greatly solves the leakage problem of traditional pumps; As a vertical centrifugal pump, it saves space through its vertical design; As an alternative to vertical water well pumps, it can directly extract water from deep wells. Whether transporting hazardous media or ordinary liquids, WFB sealless pump can provide efficient and reliable solutions.

Product Features

Leak Free Design

No shaft seal structure: completely eliminates the risk of leakage, suitable for the transportation of flammable, explosive, toxic or valuable liquids.
Environmental protection and safety: To prevent medium leakage from causing harm to the environment and personnel.

Automatic Control Function

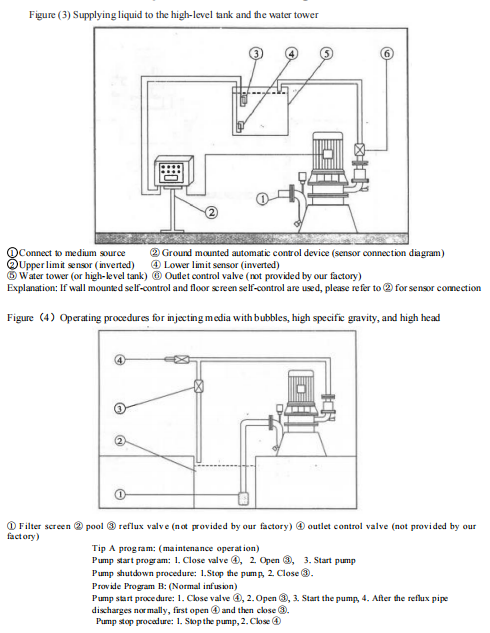

Automatic control: It can be used in conjunction with high-tech fields and highly automated systems to achieve remote monitoring and fault warning.
Shutdown sealing: Install a shutdown sealing device to ensure that the pump can maintain a sealed state even when stopped.

Low Noise, low Vibration

Smooth operation: low vibration and noise, suitable for noise sensitive occasions.

Products Advantages

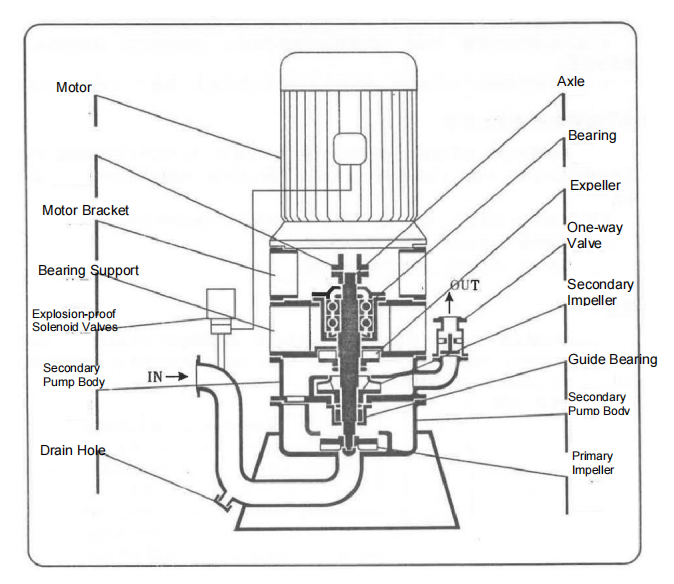

No Sealing Technology

Thoroughly solve the leakage problem: adopt a rotating seal in the form of a secondary impeller, replacing traditional packing seals or mechanical seals, greatly reducing the phenomenon of"running, emitting, dripping, and leaking", especially suitable for high-risk areas, small spaces, and inconvenient installations.

Strong Self-Priming Ability

One drainage, lifelong self-priming: Based on the principle of transplanting a vacuum pump, an electric air control valve is used to achieve rapid self-priming without the need for frequent pumping, making it particularly suitable for frequent starting situations.
Large self-priming depth: self-priming depth can reach 2.5-7 meters, suitable for suction of deep wells or low-level water sources

Seal-less Self-Control Self-Priming Pump vs. General Self-Priming Pump

Comparison Dimension	Seal-less Self-Control Self-Priming Pump	General Self-Priming Pump
Core Sealing Structure	Adopts hydrodynamic dynamic sealing / auxiliary impeller dynamic sealing or combination leak-free devices with no friction during operation.	Relies on mechanical seals (face seals) or packing seals, with mechanical friction between stationary and rotating rings.
Leakage Risk	Completely eliminates leakage issues; improved or check-valve-equipped designs avoid leaks entirely.	Mechanical seals are vulnerable parts and are highly prone to leakage after long runs, dry running, or handling crystallizing media.
Self-Priming Performance & Principle	Integrates vacuum pump principles, often with automated air control valves to achieve"one-time priming, lifetime self-priming."	Relies on the pump body's storage and air-liquid separation chambers; requires re-priming if water drains or if leaks occur.
Dry Running Tolerance	Highly resistant to dry running because there are no traditional mechanical sealing surfaces to burn out from friction.	Strictly prohibits prolonged dry running; lack of liquid instantly causes dry friction, burning and cracking the mechanical seal.

FAQ

Q1: What does"seal-less"mean, and does it really not leak?

A:"Seal-less"means the pump avoids traditional rubbing mechanical seals by using a hydrodynamic or dynamic sealing design. During operation, it experiences no seal friction, effectively eliminating routine leakage issues.

Q2: How does the"self-control, lifetime self-priming"feature work?

A: It integrates vacuum pump principles and often features an automated air control valve. This allows the pump to evacuate air and prime itself automatically during start-up without requiring manual re-priming before each use.

Q3: Can a seal-less self-priming pump run dry?

A: Yes, it has a high tolerance for dry running. Because it lacks traditional mechanical sealing faces that rely on liquid for cooling and lubrication, it won't burn out or crack instantly if temporary liquid starvation occurs.

In the field of industrial fluid treatment, traditional pump bodies often face increased equipment maintenance costs and environmental pollution risks due to mechanical seal wear, medium leakage, and other issues. The Sealess Self Control Self Imbibe Pump, with its revolutionary sealing technology and self-priming function, is gradually becoming the preferred solution for industries such as chemical, pharmaceutical, and environmental protection. This type of pump is driven by magnetic force or innovative sealing structure, combined with the compact design and efficient head characteristics of a vertical centrifugal pump. Whether dealing with highly corrosive media, high viscosity fluids, or responding to rapid start stop requirements in complex working conditions, unsealed self suction pumps demonstrate excellent adaptability and reliability. The following are the core parameters of PWS seals pump

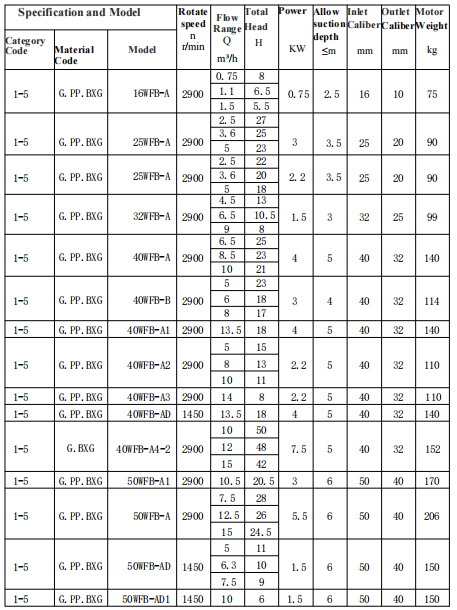

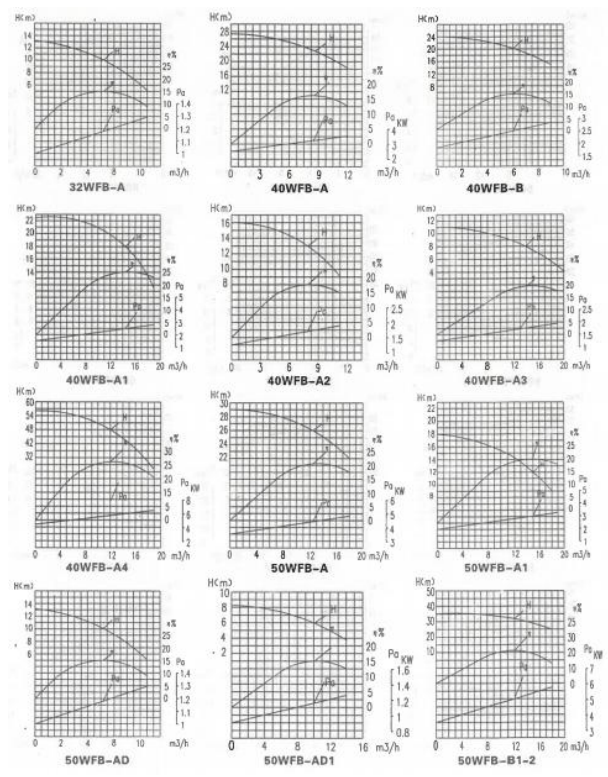

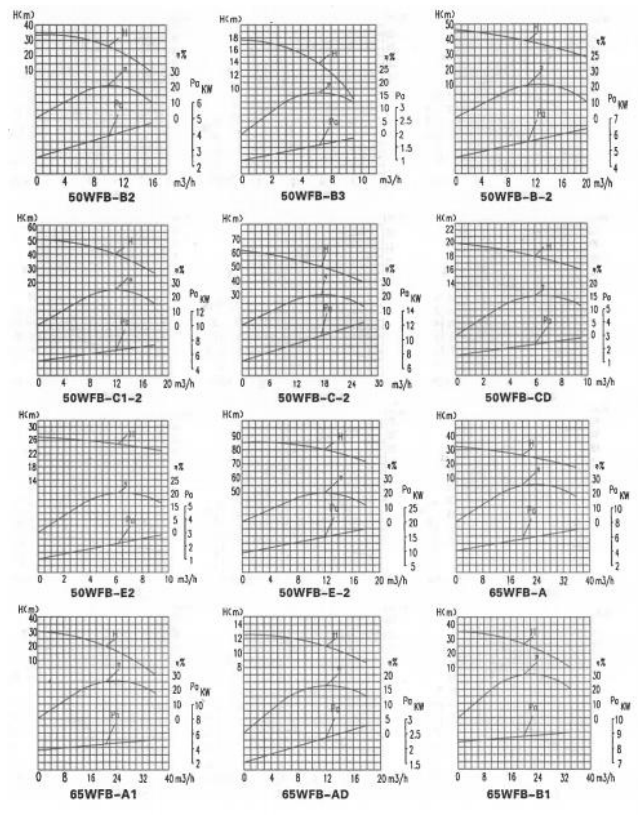

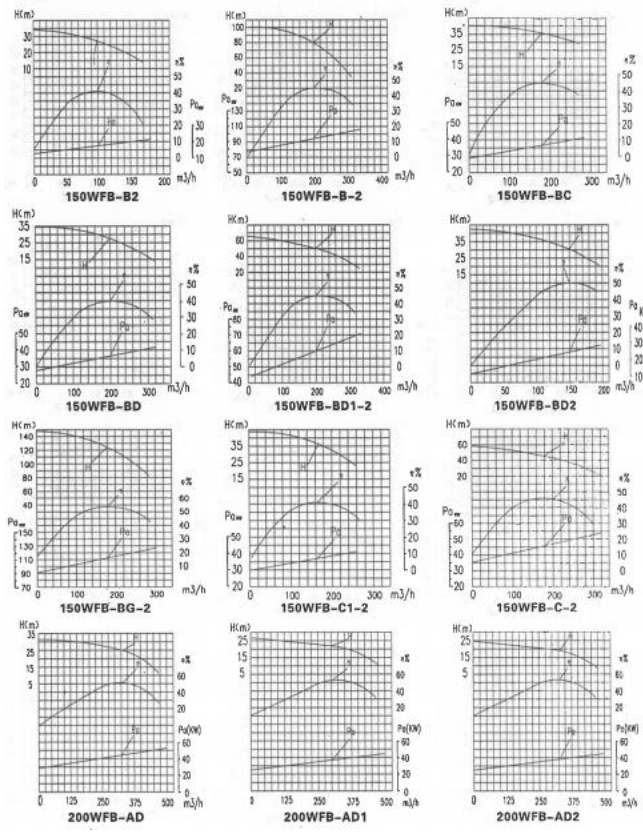

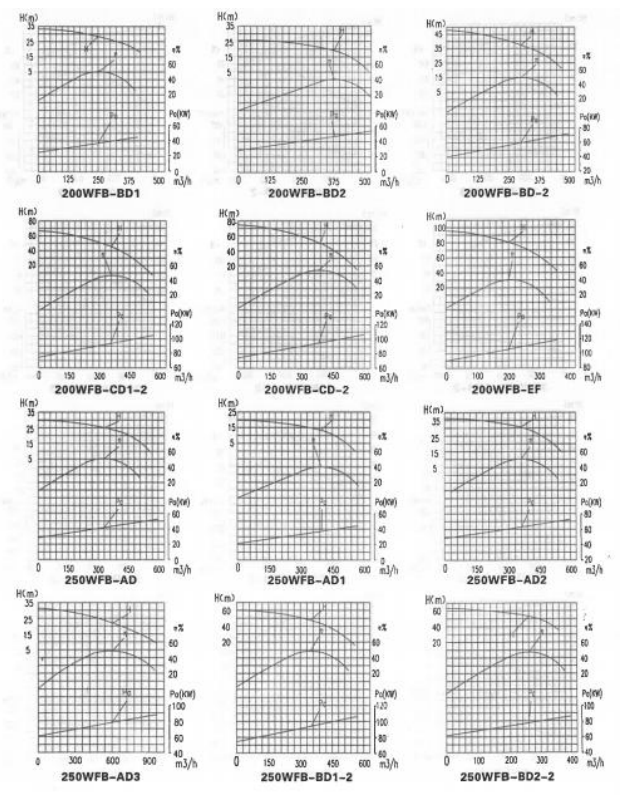

Connection Code	Material Code	Model	Speed (r/min)	Flow Rate (m³/h)	Head (m)	Power (kW)	Allowable Suction Lift (m)	Suction Dia. (mm)	Discharge Dia. (mm)	Unit Weight (kg)
1-5	G, PP, BXG	16WFB-A	2900	0.75 / 1.1 / 1.5	8 / 6.5 / 5.5	0.75	2.5	16	10	75
1-5	G, PP, BXG	25WFB-A	2900	2.5 / 3.6 / 5	27 / 25 / 23	3	3.5	25	20	90
1-5	G, PP, BXG	25WFB-A	2900	2.5 / 3.6 / 5	22 / 20 / 18	2.2	3.5	25	20	90
1-5	G, PP, BXG	32WFB-A	2900	4.5 / 6.5 / 9	13 / 10.5 / 8	1.5	3	32	25	99
1-5	G, PP, BXG	40WFB-A	2900	6.5 / 8.5 / 10	25 / 23 / 21	4	5	40	32	140
1-5	G, PP, BXG	40WFB-B	2900	5 / 6 / 8	23 / 18 / 17	3	4	40	32	114
1-5	G, PP, BXG	40WFB-A1	2900	13.5	18	4	5	40	32	140
1-5	G, PP, BXG	40WFB-A2	2900	5 / 8 / 10	15 / 13 / 11	2.2	5	40	32	110
1-5	G, PP, BXG	40WFB-A3	2900	14	8	2.2	5	40	32	110
1-5	G, PP, BXG	40WFB-A0	1450	13.5	18	4	5	40	32	140
1-5	G, BXG	40WFB-A1-2	2900	10 / 12 / 15	50 / 48 / 42	7.5	5	40	32	152
1-5	G, PP, BXG	50WFB-A1	2900	10.5	20.5	3	6	50	40	170
1-5	G, PP, BXG	50WFB-A	2900	7.5 / 12.5 / 15	28 / 26 / 24.5	5.5	6	50	40	206
1-5	G, PP, BXG	50WFB-A0	1450	5 / 6.3 / 7.5	11 / 10 / 9	1.5	6	50	40	150
1-5	G, PP, BXG	50WFB-A01	1450	10	6	1.5	6	50	40	150
1-5	G, BXG	50WFB-B2	2900	20 / 12.5 / 22	29 / 28 / 10	7.5	6	50	40	185
1-5	G, PP, BXG	50WFB-B3	2900	5 / 6.5	15 / 14	2.2	6	50	40	125
1-5	G, PP, BXG	50WFB-C0	1450	5 / 6 / 8	19 / 18 / 17	3	6	50	40	170
1-5	G, PP, BXG	50WFB-E2	2900	3.5 / 6.5 / 7.5	26 / 25 / 24	3	6	50	40	170
1-4	G, BXG	50WFB-B-2	2900	8.5 / 10 / 11 / 15	42.5 / 40 / 38 / 35	7.5	6	50	40	250
1-4	G, PP, BXG	50WFB-B1-2	2900	7 / 12 / 15	33 / 31 / 29	5.5	6	50	40	245
1-4	G, BXG	50WFB-C-2	2900	8.5 / 12 / 15	58 / 56 / 54	11	6	50	40	280
1-4	G, BXG	50WFB-C1-2	2900	11 / 12	46 / 40	7.5	6	50	40	255
1-4	G, BXG	50WFB-E-2	2900	7.5 / 12.5 / 15	82 / 80 / 75	18.5	6	50	40	305
1-5	G, PP, BXG	65WFB-A	2900	15 / 20 / 25	27 / 26 / 24	7.5	6	65	50	280
1-5	G, PP, BXG	65WFB-A1	2900	20	20	5.5	6	65	50	245
1-5	G, PP, BXG	65WFB-A0	1450	7 / 12 / 15	12 / 11 / 9	3	6	65	50	230
1-5	G, PP, BXG	65WFB-B1	2900	20	26	7.5	6	65	50	265
1-5	G, PP, BXG	65WFB-B0	1450	10 / 12 / 15	16 / 14 / 12	4	6	65	50	245
1-5	G, PP, BXG	65WFB-C2	2900	7.5 / 12.5 / 15	19 / 18 / 17	4	6	65	50	240
1-5	G, PP, BXG	65WFB-E2	2900	7.5 / 12.5 / 15	27.5 / 26 / 24.5	5.5	6	65	50	275
1-5	G, BXG	65WFB-F0	2900	20 / 8 / 15	28 / 35 / 30	7.5	6	65	50	265
1-4	G, BXG	65WFB-F3	2900	7 / 9 / 12	34 / 30 / 26	5.5	6	65	50	380
1-4	G, BXG	65WFB-C-2	2900	15 / 25 / 30	58 / 56 / 52	15	6	65	50	350
1-4	G, BXG	65WFB-C1-2	2900	22	45	15	6	65	50	350
1-4	G, BXG	65WFB-D-2	2900	15 / 25 / 30	41 / 38 / 34	11	6	65	50	215
1-4	G, BXG	65WFB-E-2	2900	15 / 25 / 30	82 / 80 / 78	22	6	65	50	580
1-4	G, BXG	65WFB-E1-2	2900	21 / 28	64 / 55	15	6	65	50	320
1-4	G, BXG	65WFB-F2-2	2900	7.5 / 12.5 / 15	39 / 37.5 / 36	7.5	6	65	50	305
1-4	G, BXG	65WFB-F-2	2900	15 / 25 / 30	127 / 125 / 123	37	6	65	50	650
1-4	G, BXG	65WFB-F1-2	2900	18 / 21.5 / 23.5	108 / 95 / 85	30	6	65	50	720
2-4	G, BXG	80WFB-A	2900	30 / 50 / 60 / 70	28 / 26 / 24 / 20	11	6	80	65	315
2-4	G, PP, BXG	80WFB-AD	2900	15 / 25 / 30 / 38	12.5 / 11 / 10.5 / 9	4	6	80	65	380
2-4	G, PP, BXG	80WFB-BD	1450	15 / 25 / 30 / 35	15 / 14 / 13 / 11	5.5	6	80	65	520
2-4	G, PP, BXG	80WFB-C2	2900	15 / 25 / 30	19 / 18 / 17	7.5	6	80	65	345
2-4	G, PP, BXG	80WFB-CD	1450	21 / 25	14 / 12	5.5	6	80	65	290
2-4	G, BXG	80WFB-E2	2900	15 / 25 / 30	27 / 26 / 24	11	6	80	65	285
1-5	G, BXG	80WFB-CD1	2900	30 / 22 / 18	15 / 18 / 20	5.5	6	80	65	263
2-4	G, PP, BXG	80WFB-E3	2900	20 / 22	22 / 18	5.5	6	80	65	257
2-4	G, BXG	80WFB-F2	2900	15 / 25 / 30	38 / 36 / 35	11	6	80	65	289
2-4	G, BXG	80WFB-F3	2900	21 / 23 / 26	34 / 30 / 26	11	6	80	65	282
2-4	G, BXG	80WFB-B-2	2900	40 / 50 / 60 / 65	40 / 38 / 35 / 25	15	6	80	65	345
2-4	G, BXG	80WFB-C-2	2900	30 / 50 / 60	59 / 55 / 52	22	6	80	65	560
2-4	G, BXG	80WFB-C1-2	2900	45 / 40	38 / 46	15	6	80	65	355
2-4	G, BXG	80WFB-E-2	2900	30 / 50 / 60	84 / 80 / 76	37	6	80	65	490
2-4	G, BXG	80WFB-E1-2	2900	30 / 40	60 / 50	18.5	6	80	65	465
2-4	G, BXG	80WFB-F-2	2900	30 / 50 / 60	128 / 120 / 110	55	6	80	65	730
2-4	G, BXG	80WFB-F1-2	2900	26 / 30 / 40	103 / 95 / 80	45	6	80	65	586
2-4	G, BXG	80WFB-E-4	2900	36 / 30 / 21	198 / 200 / 202	90	6	80	65	1358
2-4	G, PP, BXG	100WFB-A	2900	60 / 100 / 110 / 120	30 / 26 / 22 / 20	18.5	6	100	80	560
2-4	G, PP, BXG	100WFB-A	1450	60 / 100 / 110 / 120	30 / 26 / 22 / 20	18.5	6	100	80	665
2-4	G, PP, BXG	100WFB-AD	1450	30 / 40 / 50 / 60	12 / 11 / 10 / 9	7.5	6	100	80	387
2-4	G, BXG	100WFB-BD	1450	30 / 40 / 50 / 68	15 / 14 / 13 / 11	11	6	100	80	487
2-4	G, BXG	100WFB-C2	2900	40 / 50 / 60	20 / 19 / 18	11	6	100	80	490
2-4	G, BXG	100WFB-C3	2900	40 / 45	16 / 15	7.5	6	100	80	468
2-4	G, BXG	100WFB-C4	2900	70 / 100 / 120	39 / 37 / 35	30	6	100	80	546
2-4	G, BXG	100WFB-E2	2900	30 / 50 / 55	26 / 25 / 24	11	6	100	80	521
2-4	G, PP, BXG	100WFB-E3	2900	58 / 62	22 / 18	11	6	100	80	526
2-4	G, PP, BXG	100WFB-F3	2900	40 / 43 / 46	33 / 29 / 26	11	6	100	80	528
2-4	G, BXG	100WFB-B-2	2900	60 / 80 / 100 / 120	40 / 36 / 32 / 28	22	6	100	80	489
2-4	G, BXG	100WFB-C-2	2900	45 / 80 / 100	55 / 48 / 45	30	6	100	80	680
2-4	G, BXG	100WFB-C1-2	2900	75 / 85	40 / 35	22	6	100	80	545
2-4	G, BXG	100WFB-E-2	2900	60 / 80 / 100	87 / 80 / 75	55	6	100	80	870
2-4	G, BXG	100WFB-E1-2	2900	80 / 100 / 120	60 / 57.5 / 55	45	6	100	80	786
2-4	G, BXG	100WFB-F-2	2900	60 / 80 / 100	133 / 125 / 120	90	6	100	80	1526
2-4	G, BXG	100WFB-F1-2	2900	80 / 90 / 100	108 / 90 / 80	75	6	100	80	1325
2-4	G, BXG	100WFB-F2-2	2900	30 / 50 / 60	40 / 38 / 36	15	6	100	80	534
2-4	G, BXG	125WFB-A	2900	100 / 150 / 180	55 / 50 / 45	55	6	125	100	875
2-4	G, PP, BXG	125WFB-A1	2900	170 / 185	40 / 30	45	6	125	100	852
2-4	G, PP, BXG	125WFB-A2	1450	70 / 80 / 100	20 / 19 / 17	15	6	125	100	638
2-4	G, PP, BXG	125WFB-AD	1450	105 / 110	16 / 15	15	6	125	100	627
2-4	G, PP, BXG	125WFB-B2	2900	80 / 100 / 120	26 / 25 / 24	18.5	6	125	100	582
2-4	G, PP, BXG	125WFB-B3	2900	85 / 90	22 / 20	15	6	125	100	634
2-4	G, BXG	125WFB-C2	2900	80 / 100 / 120	40 / 38 / 36.5	30	6	125	100	667
2-4	G, PP, BXG	125WFB-C3	2900	92 / 85 / 80	23 / 26 / 29	18.5	6	125	100	589
2-4	G, BXG	125WFB-E2	2900	85	36	22	6	125	100	-

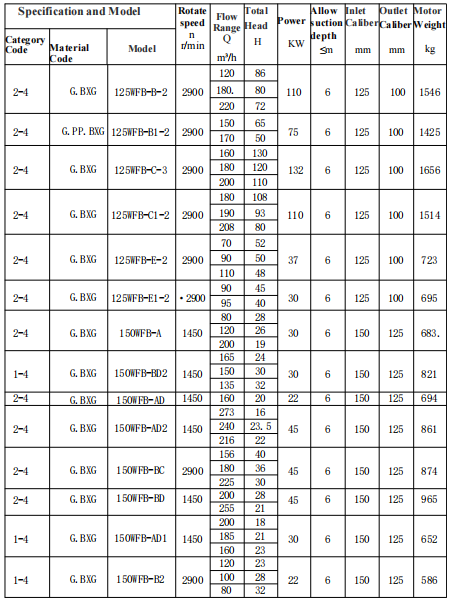

2-4	G.BXG	125WFB-B-2	2900	120 / 180 / 220	86 / 80 / 72	110	6	125	100	1546
2-4	G.PP.BXG	125WFB-B1-2	2900	150 / 170	65 / 50	75	6	125	100	1425
2-4	G.BXG	125WFB-C-3	2900	160 / 180 / 200	130 / 120 / 110	132	6	125	100	1656
2-4	G.BXG	125WFB-C1-2	2900	180 / 190 / 208	108 / 93 / 80	110	6	125	100	1514
2-4	G.BXG	125WFB-E-2	2900	70 / 90 / 110	52 / 50 / 48	37	6	125	100	723
2-4	G.BXG	125WFB-E1-2	2900	90 / 95	45 / 40	30	6	125	100	695
2-4	G.BXG	150WFB-A	1450	80 / 120 / 200	28 / 26 / 19	30	6	150	125	683
1-4	G.BXG	150WFB-BD2	1450	165 / 150 / 135	24 / 30 / 32	30	6	150	125	821
2-4	G.BXG	150WFB-AD	1450	160	20	22	6	150	125	694
2-4	G.BXG	150WFB-AD2	1450	273 / 240 / 216	16 / 23.5 / 22	45	6	150	125	861
2-4	G.BXG	150WFB-BC	2900	156 / 180 / 225	40 / 36 / 30	45	6	150	125	874
2-4	G.BXG	150WFB-BD	1450	200 / 255	28 / 21	45	6	150	125	965
1-4	G.BXG	150WFB-AD1	1450	200 / 185 / 160	18 / 21 / 23	30	6	150	125	652
1-4	G.BXG	150WFB-B2	2900	120 / 100 / 80	23 / 28 / 32	22	6	150	125	586

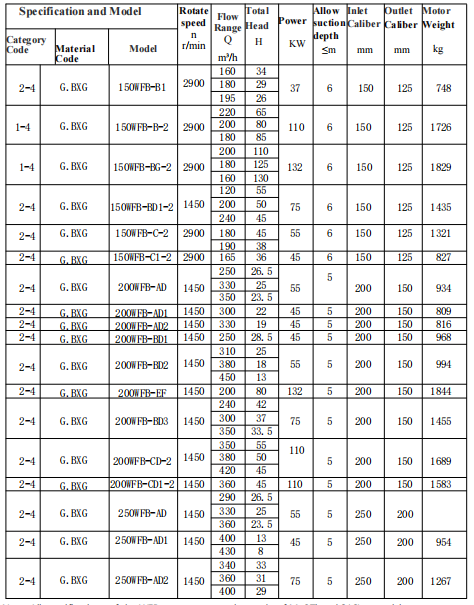

2-4	G.BXG	150WFB-B1	2900	160 / 180 / 195	34 / 29 / 26	37	6	150	125	748
1-4	G.BXG	150WFB-B-2	2900	220 / 200 / 180	65 / 80 / 85	110	6	150	125	1726
1-4	G.BXG	150WFB-BG-2	2900	200 / 180 / 160	110 / 125 / 130	132	6	150	125	1829
2-4	G.BXG	150WFB-BD1-2	1450	120 / 200 / 240	55 / 50 / 45	75	6	150	125	1435
2-4	G.BXG	150WFB-C-2	2900	180 / 190	45 / 38	55	6	150	125	1321
2-4	G.BXG	150WFB-C1-2	2900	165	36	45	6	150	125	827
2-4	G.BXG	200WFB-AD	1450	250 / 330 / 350	26.5 / 25 / 23.5	55	5	200	150	934
2-4	G.BXG	200WFB-AD1	1450	300	22	45	5	200	150	809
2-4	G.BXG	200WFB-AD2	1450	330	19	45	5	200	150	816
2-4	G.BXG	200WFB-BD1	1450	250	28.5	45	5	200	150	968
2-4	G.BXG	200WFB-BD2	1450	310 / 380 / 450	25 / 18 / 13	55	5	200	150	994
2-4	G.BXG	200WFB-EF	1450	200	80	132	5	200	150	1844
2-4	G.BXG	200WFB-BD3	1450	240 / 300 / 350	42 / 37 / 33.5	75	5	200	150	1455
2-4	G.BXG	200WFB-CD-2	1450	350 / 380 / 420	55 / 50 / 45	110	5	200	150	1689
2-4	G.BXG	200WFB-CD1-2	1450	360	45	110	5	200	150	1583
2-4	G.BXG.	250WFB-AD	1450	290 / 330 / 360	26.5 / 25 / 23.5	55	5	250	200
2-4	G.BXG	250WFB-AD1	1450	400 / 430	13 / 8	45	5	250	200	954
2-4	G.BXG	250WFB-AD2	1450	340 / 360 / 400	33 / 31 / 29	75	5	250	200	1267

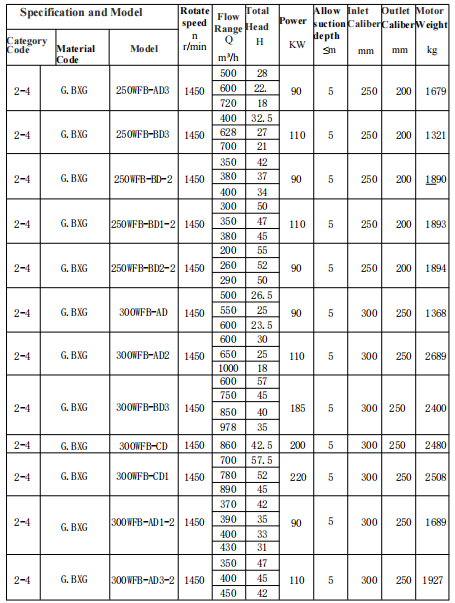

2-4	G.BXG	250WFB-AD3	1450	500 / 600 / 720	28 / 22 / 10	90	5	250	200	1479
2-4	G.BXG	250WFB-BD1	1450	400 / 620 / 700	32.5 / 27 / 21	110	5	250	200	1321
2-4	G.BXG	250WFB-BD-2	1450	350 / 380 / 400	42 / 37 / 34	90	5	250	200	1550
2-4	G.BXG	250WFB-BD1-2	1450	300 / 350 / 380	50 / 47 / 45	110	5	250	200	1650
2-4	G.BXG	250WFB-BD2-2	1450	200 / 260 / 290	55 / 52 / 50	90	5	250	200	1034
2-4	G.BXG	300WFB-AD	1450	500 / 550 / 600	26.5 / 25 / 23.5	90	5	300	250	1360
2-4	G.BXG	300WFB-AD2	1450	800 / 850 / 1000	30 / 25 / 18	110	5	300	250	2050
2-4	G.BXG	300WFB-BD1	1450	600 / 750 / 850	57 / 45 / 40	185	5	300	250	2400
2-4	G.BXG	300WFB-CD	1450	878 / 860	35 / 42.5	200	5	300	250	2480
2-4	G.BXG	300WFB-CD1	1450	700 / 780 / 880	57.5 / 52 / 45	220	5	300	250	2510
2-4	G.BXG	300WFB-AD1-2	1450	370 / 390 / 400 / 430	42 / 38 / 35 / 31	90	5	300	250	1889
2-4	G.BXG	300WFB-AD3-2	1450	350 / 400 / 450	47 / 45 / 42	110	5	300	250	1927
2-4	G.BXG	300WFB-BD-2	1450	300 / 320 / 345	57.5 / 55 / 52.5	110	5	300	250	1956
2-4	G.BXG	300WFB-BD1-2	1450	628 / 780 / 900	55 / 47.5 / 38	220	5	300	250	2316
2-4	G.BXG	300WFB-BD2-2	1450	740 / 740 / 890	49 / 48 / 38	185	5	300	250	2058
2-4	G.BXG	350WFB-AD	1450	550 / 600 / 700	26.5 / 25 / 23.5	90	5	350	300	2500
2-4	G.BXG	350WFB-AD1	1450	540 / 630 / 820	35 / 31 / 23	145	5	350	300	2280
2-4	G.BXG	350WFB-AD2	1450	450 / 500 / 550	42.5 / 40 / 37.5	132	5	350	300	2610
2-4	G.BXG	350WFB-AD3	1450	500 / 531 / 590	50 / 47.5 / 45	145	5	350	300	2286
2-4	G.BXG	350WFB-BD	1450	306 / 356 / 400	57.5 / 55 / 52	110	5	350	300	2610
2-4	G.BXG	350WFB-BD1	1450	848 / 950 / 1200	50 / 48 / 38	250	5	350	300	2265
2-4	G.BXG	350WFB-BD2	1450	886 / 980 / 1180	57.5 / 52.5 / 45	280	5	350	300	3080
2-4	G.BXG	350WFB-BD3	1450	860 / 1050 / 1100	42 / 35 / 32	200	5	350	300	2536
2-4	G.BXG	350WFB-CD	1450	1200 / 1320	35 / 32	220	5	350	300	2688
2-4	G.BXG	350WFB-CD1	1450	1156 / 1280	40 / 35	250	5	350	300	2886
2-4	G.BXG	350WFB-CD2	1450	1128 / 1250	45 / 38	280	5	350	300	3080
2-4	G.BXG	350WFB-CD3	1450	1000 / 1200	57.5 / 50	315	5	350	300	3285
2-4	G.BXG	350WFB-ED	1450	900 / 1000	30 / 25	160	5	350	300	2300
2-4	G.BXG	400WFB-FD1	1450	1096 / 1140 / 1320	35 / 30 / 25	200	5	400	350	2660
2-4	G.BXG	400WFB-AD	730	1450 / 1520	18 / 16	160	5	400	350	2890
2-4	G.BXG	400WFB-AD1	730	1450 / 1600	20 / 10	90	5	400	350	3150
2-4	G.BXG	400WFB-AD2	730	1600	12	110	5	400	350	3000
2-4	G.BXG	400WFB-AD3	730	2050	15	185	5	400	350	3750
2-4	G.BXG	400WFB-ED	730	1700 / 2000 / 2500	20 / 18 / 15	185	5	400	350	2500
2-4	G.BXG	400WFB-BD1	730	1600 / 2000 / 2226	22.5 / 20 / 18	200	5	400	350	2650
2-4	G.BXG	400WFB-BD2	730	1800 / 2000 / 2360	22 / 20 / 18	250	5	400	350	3090
2-4	G.BXG	400WFB-BD3	980	1700 / 2200 / 2500	25 / 22 / 20	280	5	400	350	3850
2-4	G.BXG	400WFB-CD1	730	1880	12	132	5	400	350	2750
2-4	G.BXG	400WFB-CD2	730	2280	12	160	5	400	350	2860
2-4	G.BXG	400WFB-CD3	730	1905	18	200	5	400	350	2850
2-4	G.BXG	450WFB-AD	1450	1650 / 2880	35 / 20	315	5	450	400	3250
2-4	G.BXG	450WFB-BD1	730	2825	20	315	5	450	400	2968
2-4	G.BXG	450WFB-AD1	730	2890	15	250	5	450	400	2650
2-4	G.BXG	450WFB-BD	980	2825	25	400	5	450	400	2880
2-4	G.BXG	600WFB-AD	730	3400	15	280	5	600	500	3080
2-4	G.BXG	600WFB-BD	730	4280	20	480	5	600	500	3080
2-4	G.BXG	600WFB-CD	730	4020	25	520	5	600	500	2850

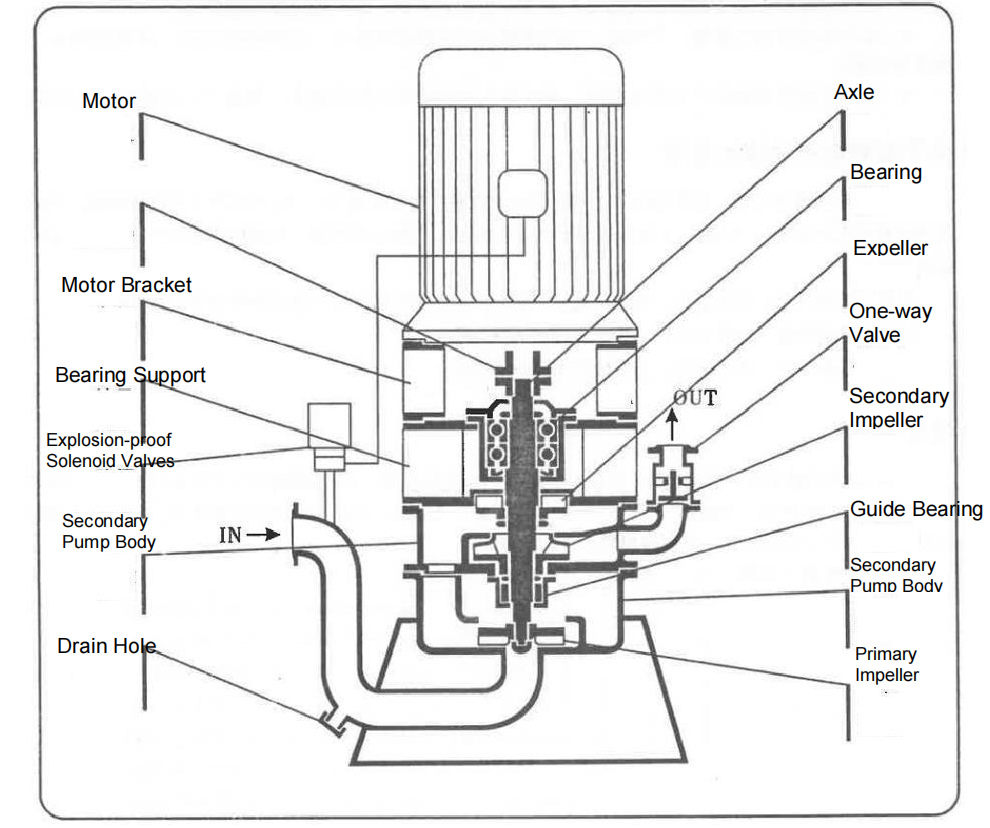

As an innovative product that combines sealless pump and vertical centrifugal pump technology, the PWS Sealess Self Control Self Absorption Pump's core component design fully embodies the characteristics of safety and efficiency. The pump adopts a magnetic transmission instead of traditional mechanical seals, completely eliminating the risk of medium leakage through the static sealing structure of the inner and outer magnetic rotors. Its isolation sleeve is mostly made of corrosion-resistant metal or high-strength engineering plastic, ensuring long-term stability under harsh working conditions such as chemical and pharmaceutical industries. The pump body adopts a vertical structure, with the impeller and flow guiding components arranged vertically. Combined with an optimized self-priming chamber, it can achieve rapid self-priming without external water intake conditions, especially suitable for intermittent operation scenarios. Key components such as shaft sleeves and bearings are made of wear-resistant engineering ceramics or silicon carbide materials, relying on the conveying medium to achieve self-lubricating, which not only reduces maintenance costs but also improves the equipment's adaptability to high viscosity or particle containing media. In addition, the motor of the pump is directly connected to the pump body through an elastic coupling, reducing transmission losses. At the same time, the vertical layout significantly saves installation space, making it an ideal choice in fields such as municipal sewage and environmental engineering.

The Sealless Self-Control Self-Imbibe Pump is an advanced vertical water well pump designed for efficient and maintenance-free operation. Its innovative sealless design eliminates leakage risks, while the self-control and self-imbibe features ensure automatic fluid regulation and optimal suction performance without manual intervention. Ideal for deep-well applications, this vertical pump is engineered for durability, energy efficiency, and reliable water extraction in agricultural, industrial, or residential settings. Easy to install, it minimizes downtime and maximizes productivity in demanding environments.

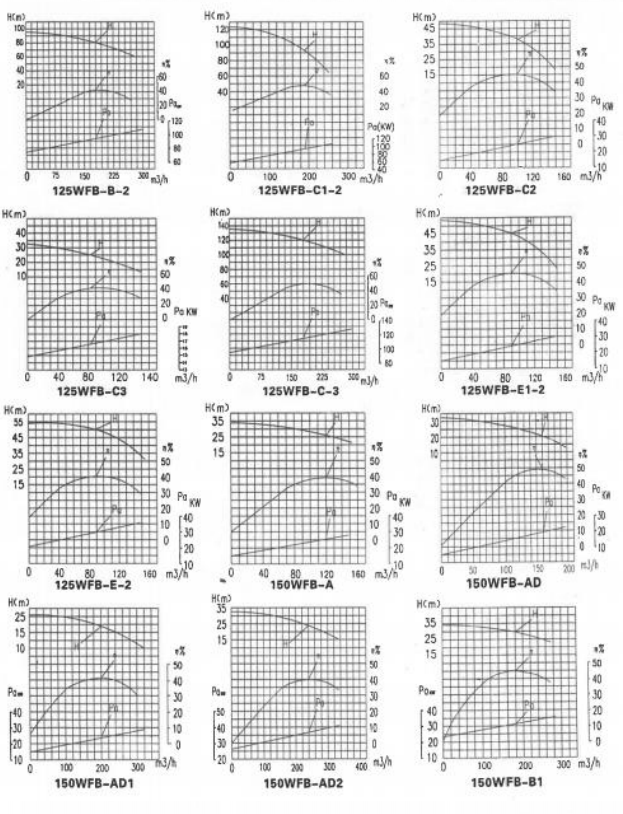

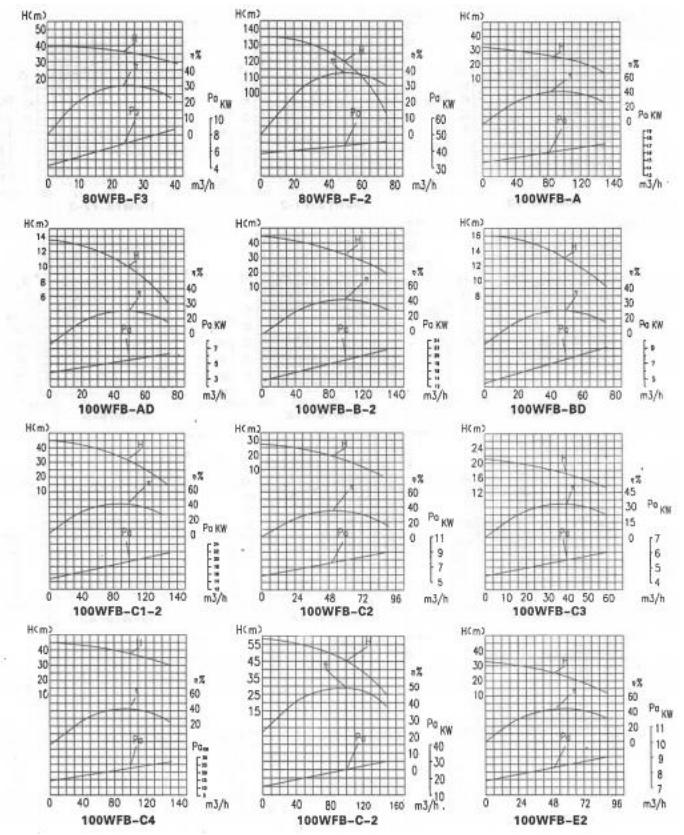

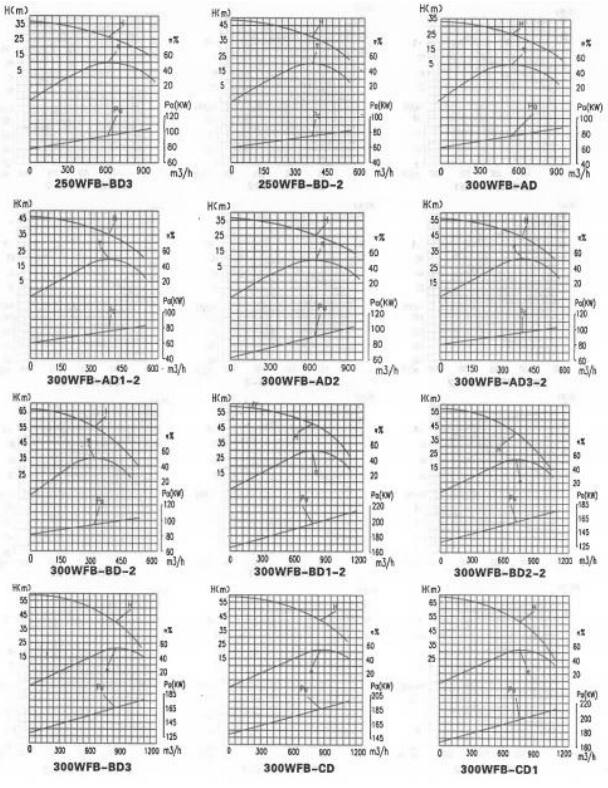

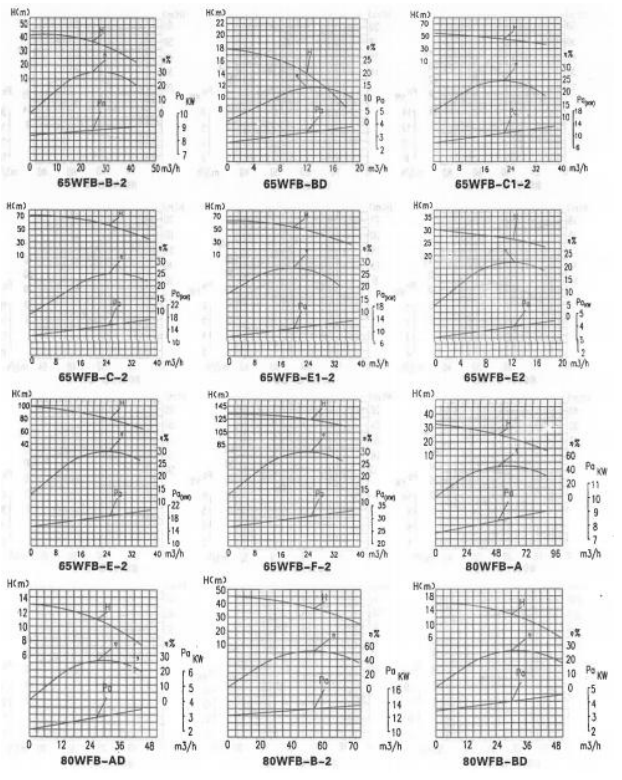

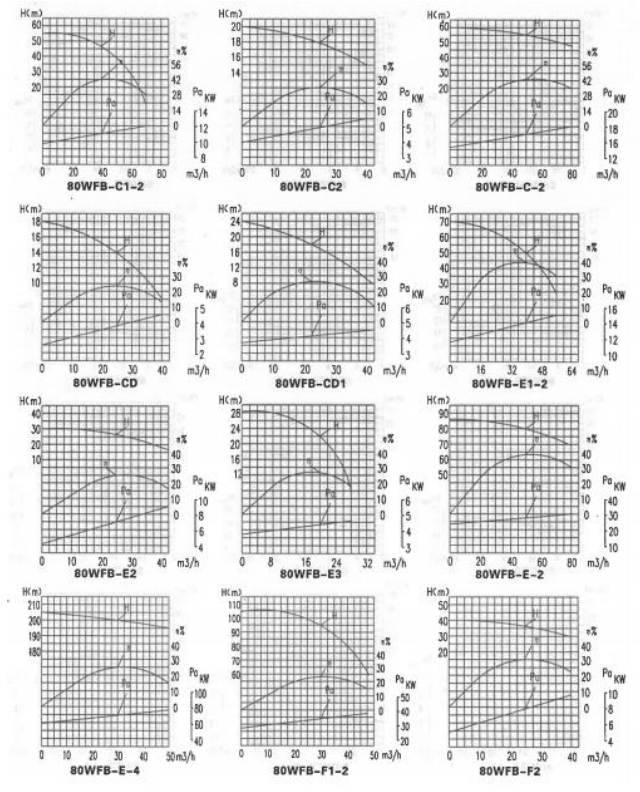

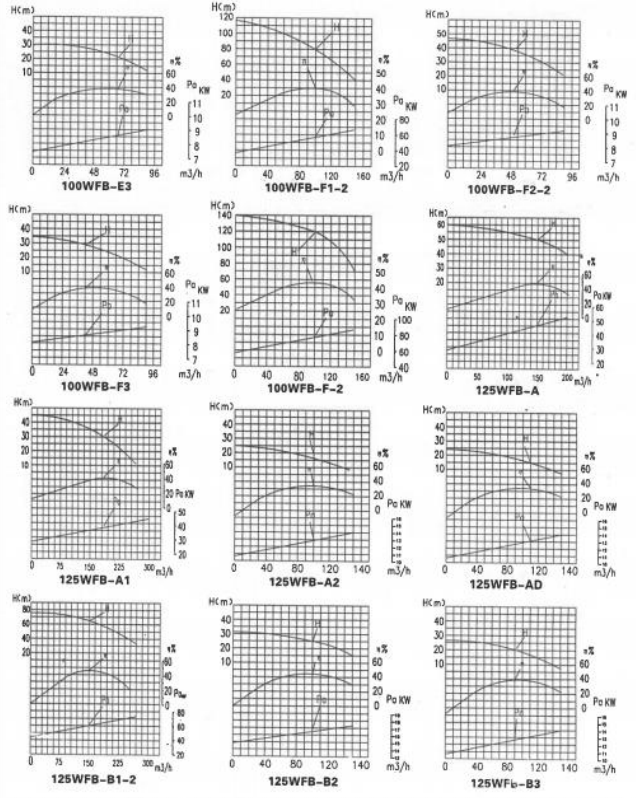

The performance curve of the Sealless Self-Control Self-Imbibe Pump highlights its efficiency as a sealless pump and vertical centrifugal pump, showcasing flow rate (Q), head (H), power consumption (P), and efficiency (η) across various operating conditions. Designed for deep-well applications, its sealless construction ensures zero leakage, while the vertical centrifugal pump configuration delivers high-pressure water lifting with minimal energy loss. The curve demonstrates stable performance under variable loads, with the self-imbibe feature enabling reliable self-priming even at low suction pressures. Ideal for industrial, agricultural, or municipal water systems, this pump combines durability with optimized hydraulics for consistent operation.

Recommend Products

Contact PUMP WISE

We Usually Respond Within 24 Hours Between Monday-Friday

WENZHOU PUMP WISE FLUID EQUIPMENT CO., LTD.

Self Priming Pump

Sewage Pump

Diesel Pump

Sales Manager：+39 389 949 9067

Sales Representative：+39 344 7395079
Sales Manager WhatsApp：+86 19518108981

winnie@pumppioneer.com

NO. 8, NORTH ROAD, PUMP AND VALVE INDUSTRIAL ZONE, DONGOU HETIAN INDUSTRIAL ZONE

Motor & Electronic Control

IBAN: LU814080000047209734

Account Holder Name: PUMP WISE FLUID EQUIPMENT CO., LTD

Currency of Receipt: EUR GBP PLN

Bank Name: Banking Circle S.A.

Bank Location: Luxembourg

Bank Address: 2 Boulevard de la Foire L-1528 Luxembourg Luxembourg

Account Type: checking

Swift Code: BCIRLULL (BCIRLULLXXX, if 11 characters are required)
