DN20-DN125 IMC Fluorine Lined Magnetic Pumps

Model NO. PWSIMC

Flow Range：1.8 - 400m³/h
Head Range：8-80m
Inlet/Outlet Range：DN20-DN125
Motor Power：0.37 - 45kW

Quantity

Engineered for safety, the PWS IMC Fluorine-Lined Magnetic Pump replaces traditional seals with a contactless magnetic coupling to eliminate leakage risks. Its fully enclosed design and corrosion-proof lining allow it to handle aggressive acids and flammable liquids under extreme conditions (180°C/1.6MPa). This magnetic drive centrifugal system provides a total containment solution, ensuring maximum reliability and strict environmental compliance for modern chemical processing.

Why Choose a Magnetic Water Pump?

Leak-Free Safety

Seamless Isolation: Outer/inner magnet coupling with a PTFE isolation sleeve creates a fully enclosed system, ideal for volatile or toxic water-based media.
Corrosion Resistance: Fluoroplastic-lined flow path withstands pH 0-14 fluids, outperforming stainless steel in acid/alkali transport.

Operational Efficiency

15% Energy Savings: Magnetic drive reduces friction losses vs. traditional pumps.
50% Faster Maintenance: Pull-back design allows impeller/bearing replacement without pipeline disassembly.

How Does a Magnetic Drive Centrifugal Pump Work?

Fluid Dynamics

The impeller’s rotation pressurizes liquids, functioning as a centrifugal pump with enhanced purity (no metal ion contamination).

Thermal Management:

Built-in heat dissipation channels prevent demagnetization under high-temperature cycles (e.g., 180°C electrolyte recycling).

Modular Seals

Double containment shells provide failsafe leakage protection for hazardous media.

Key Applications of Magnetic Drive Centrifugal Pumps

Semiconductor Manufacturing: Ultra-pure chemical delivery for wafer etching and cleaning.
Lithium Battery Recycling: Safe transfer of corrosive electrolytes (LiPF6, DMC) with zero leakage.
Pharmaceuticals: Sterile handling of APIs (active pharmaceutical ingredients) and injection-grade solutions.
Waste Treatment: Hazardous acid/alkali neutralization and ionic membrane caustic soda processes.

Service & Compliance

Accurate demand matching

Free on-site demand analysis, customized flow, pressure and piping configuration scheme;

Rapid delivery response

Standardized module design, delivery cycle shortened by 30%, emergency project support expedited processing;

Flexible warranty policy

1 year warranty for the whole machine, 2 years extended warranty for non-standard customized parts, regular maintenance and fault fast response service.

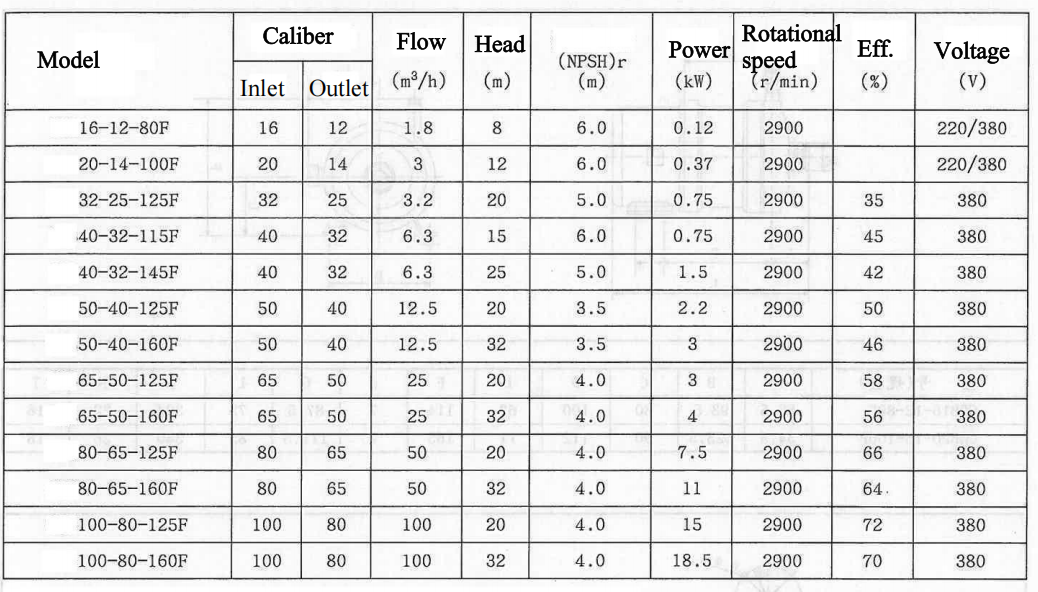

As a highly corrosion-resistant evolution of magnetic drive technology, Fluorine-lined Magnetic Pumps establish the performance benchmark for transporting aggressive media. Unlike traditional centrifugal pumps, these units utilize a seal-less magnetic coupling to ensure completely leak-free operation.The core technical specifications—specifically flow rate, head, and power—must be precision-engineered to align with the thermal and pressure thresholds of the fluoroplastic lining. Furthermore, the efficiency of the magnetic torque transfer is significantly influenced by the viscosity of the medium and the presence of solid particles, which serve as the primary operational constraints.

Setting the gold standard for corrosion resistance within magnetic drive technology, Fluorine-Lined Magnetic Pumps seamlessly merge the leak-free architecture of centrifugal magnetic drives with the exceptional chemical inertness of fluoroplastics

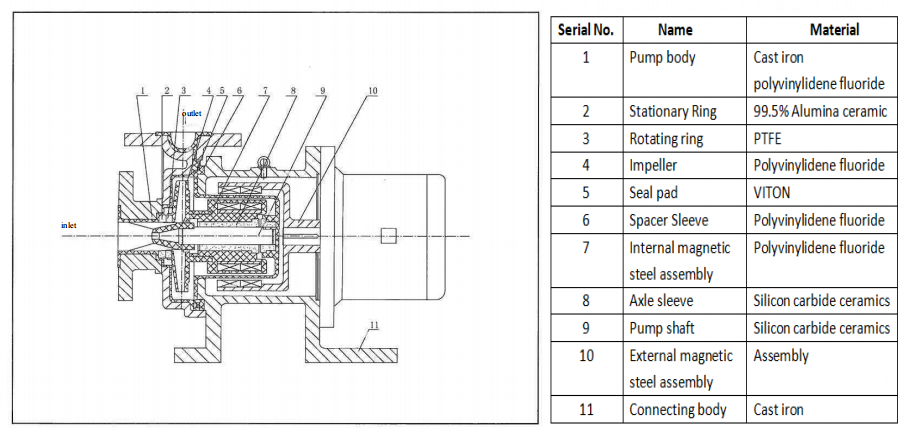

By utilizing a sophisticated magnetic coupling system, the inner and outer rotors, along with the fluoroplastic isolation sleeve, eliminate the need for traditional shaft seals and effectively remove any risk of leakage. The integration of high-performance liners like PTFE or PFA across the pump casing and impeller ensures that all "wet end" components remain impervious to aggressive media, including concentrated acids and organic solvents. This robust design makes them an essential solution for the safe, long-term transport of highly corrosive fluids.

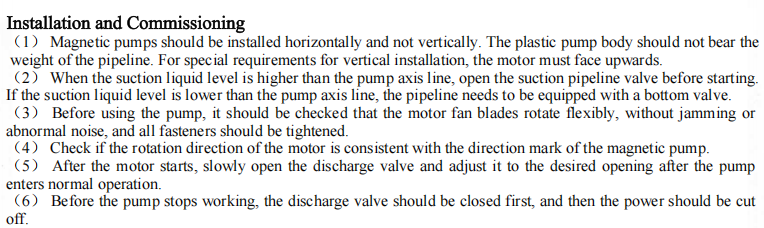

Fluorine Lined Magnetic Pumps, as the core equipment in the Magnetic Pump technology system to cope with strong corrosion conditions, have a strict installation process that directly affects the reliability of the leak free design of Magnetic Drive Centrifugal Pumps. Due to the use of fluoroplastic lining and magnetic coupling transmission structure, PWS Magnetic Water Pump has more stringent requirements for installation environment cleanliness, component neutrality, and medium pretreatment. The flexibility and chemical inertness of fluoroplastic lining require pipeline connection to avoid stress concentration, and the precise gap of magnetic coupling needs to prevent metal impurities from entering and causing transmission failure. Particulate matter in the medium may accelerate the wear of fluoroplastic flow channels.

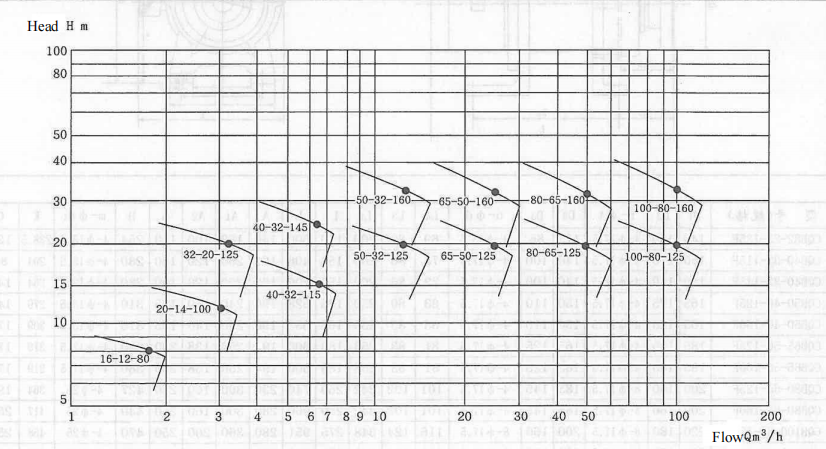

Fluorine Lined Magnetic Pumps, as a benchmark product for corrosion resistance in the field of Magnetic Pumps, not only provide a visual mapping of the technical characteristics of Magnetic Drive Centrifugal Pumps, but also reveal the deep coupling relationship between leak free sealing structures and fluid dynamics. The PWS Magnetic Water Pump achieves the transformation from dynamic sealing to static sealing through a magnetic coupling, and its performance curve often shows a steep characteristic of the head rapidly decreasing with the increase of flow rate, and the high-efficiency range is narrow. This is due to the high sensitivity of the magnetic transmission system to speed fluctuations, as well as the direct influence of the fluoroplastic lining on the smoothness and energy loss of the flow path.
