DN20-DN200 IH Chemical Centrifugal Pump

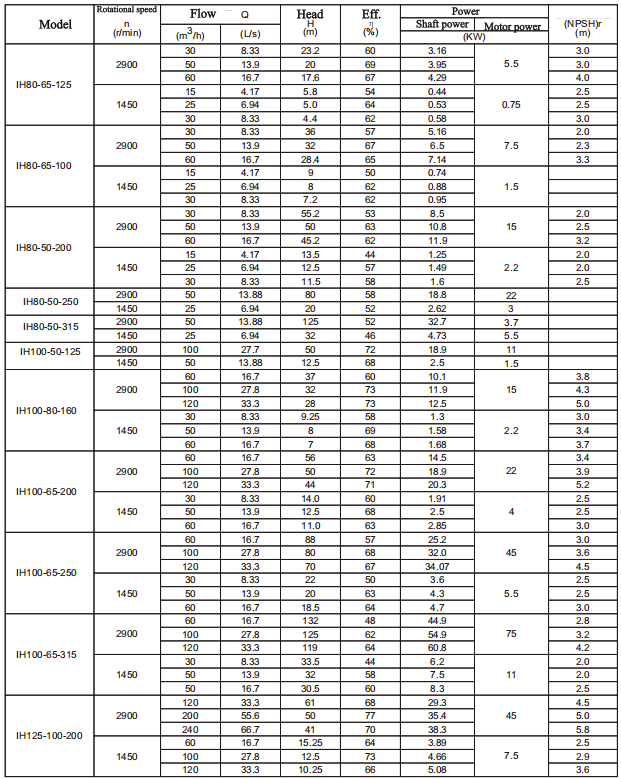

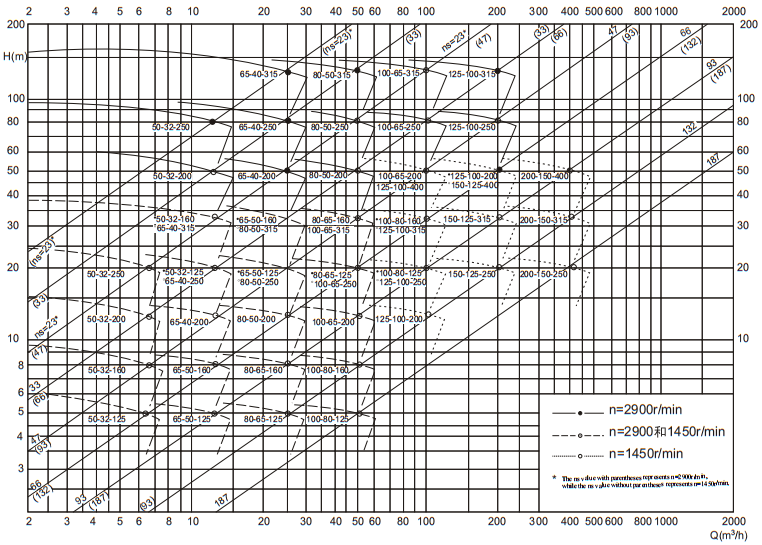

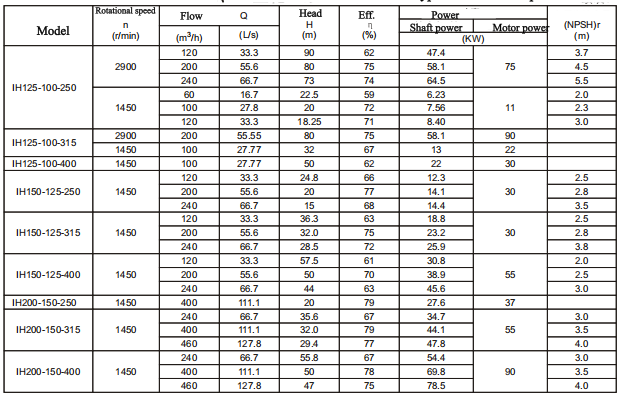

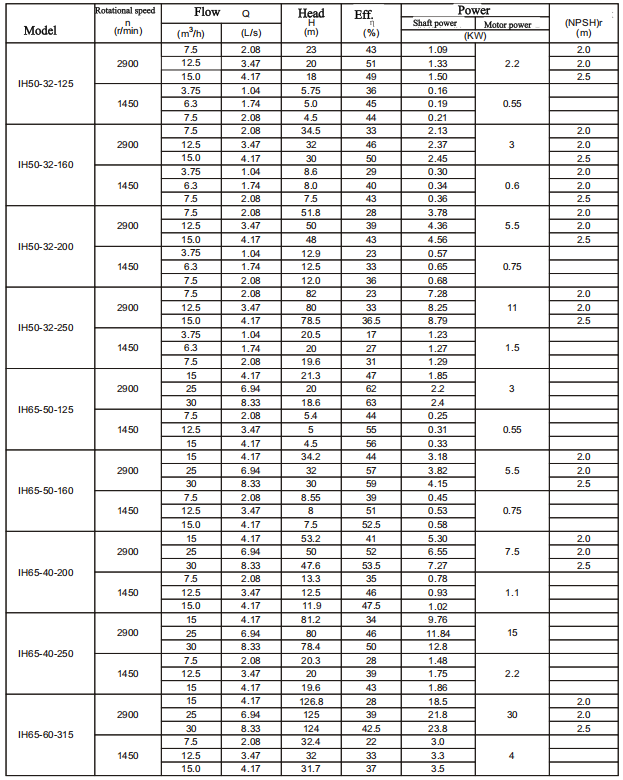

Flow Range：3.5～600m³/h
Head Range：5-80m
Inlet/Outlet Range：DN20-DN200
Motor Power：0.75～110kW
IH Chemical Pumps Advantages
Zero Corrosion
Metal-embedded F46 lining resists pH 0-14 media, outperforming standard stainless steel chemical pumps in acid/alkali longevity.
Leak-Free Guarantee
Dual mechanical seals (SiC/Carbon) ensure zero leakage, critical for toxic or volatile chemicals.
50% Faster Maintenance
Rear-opening design allows impeller replacement without pipeline disassembly, slashing downtime vs. conventional chemical metering pumps.
IH Chemical Pumps Feature
Wide Temperature Range and Aging Resistance
- The temperature range is wide and suitable for the transportation needs of low-temperature crystallization media or high-temperature reactors.
- Material stability: Fluoroplastic materials do not age or deform, have stable performance in long-term use, reduce maintenance frequency, and are suitable for reliable operation as a Chemical feed pump in continuous production.
Key Applications of the Fluorine-Lined Chemical Pump
High-Purity Chemical Transfer
Semiconductor-grade hydrofluoric acid, pharmaceutical intermediates.
Waste Acid Recycling
Battery electrolyte recovery, pickling line circulation.
High-Temperature Processes
Ionic membrane caustic soda production, solvent distillation loops.
Explosive Environments
ATEX-certified models for organic solvent transfer in paint/coatings industries.
Service & Certification
- Accurate demand matching
Free on-site demand analysis, customized flow, pressure and piping configuration scheme;
- Rapid delivery response
Standardized module design, delivery cycle shortened by 30%, emergency project support expedited processing;
- Flexible warranty policy
1 year warranty for the whole machine, 2 years extended warranty for non-standard customized parts, regular maintenance and fault fast response service.
