DN20-DN200 0.5-90KW IHF Chemical Centrifugal Pump
Head Range：4.5-80m
Inlet/Outlet Range：DN20-DN200
Motor Power：0.5-90KW
Chemical Transfer Pump Advantage
Corrosion Resistance
316L/904L alloy construction resists 98% sulfuric acid and 40% caustic soda, outperforming standard chemical pumps in longevity.
Zero Leakage
Dual mechanical seals (SiC vs. carbon) ensure safe handling of volatile organics.
5% Higher Efficiency
Optimized impeller design reduces energy costs vs. legacy F-type pumps.
Quick-Change Maintenance
Rear-opening structure allows impeller replacement in <30 minutes without pipe disassembly.
Pump Features
As a typical representative in the field of chemical pumps, IHF pump has the core functions of both chemical transfer pump and chemical injection pump. Its features are as follows:
High Efficiency, Energy Saving and Structural Optimization
- Hydraulic model: adopts advanced hydraulic design, high efficiency, low energy consumption, wide flow range and high head.

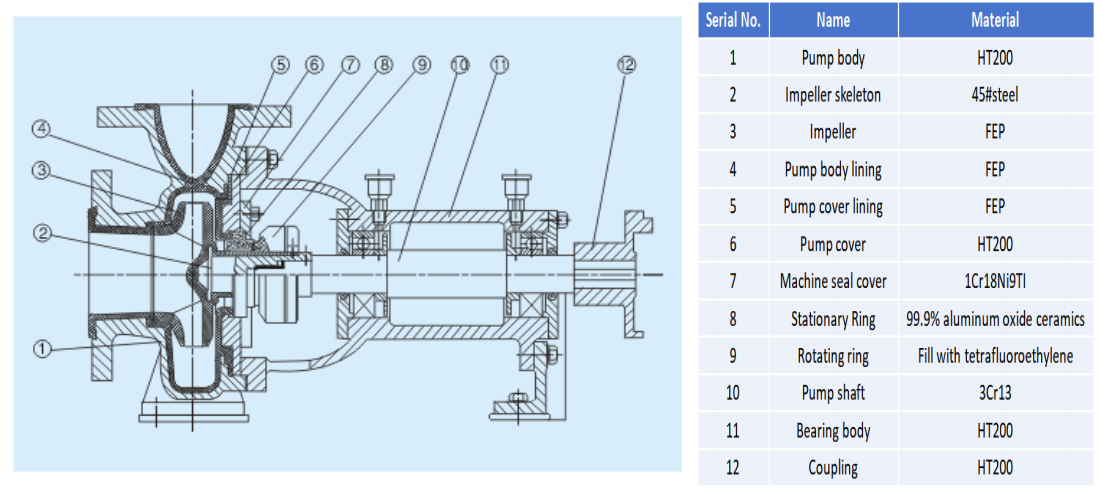

- Structural features: single-stage single-suction cantilever structure, small axial force, low vibration, low noise, suitable for continuous operation
- The temperature range is wide, meeting the transportation requirements of low-temperature crystallization media or high-temperature reactors, and adapting to complex working conditions
Key Applications of the IH Chemical Pump
Chemical Reactor Circulation
Continuous transfer of hydrochloric acid/nitric acid mixtures in PVC production.
High-Temperature Molten Salt
Energy storage system heat transfer fluid management.
Pharmaceutical CIP Systems
Hygienic-grade alloy meets FDA/CE standards for batch processing.
Oil Refining
Crude oil byproduct transfer with ATEX-certified explosion-proof models.
Service Assurance
- Accurate demand matching
Free on-site demand analysis, customized flow, pressure and piping configuration scheme;
- Rapid delivery response
Standardized module design, delivery cycle shortened by 30%, emergency project support expedited processing;
- Flexible warranty policy
1 year warranty for the whole machine, 2 years extended warranty for non-standard customized parts, regular maintenance and fault fast response service.
