Vertical Multistage Centrifugal Pumps Redefining Pressure Standards for Industry and Construction
- Q1: What are the technical advantages of the vertical structure in actual installation and layout?
- Q2: How does multi-stage impeller tandem improve pumping efficiency and pressure?
- Q3: How do stainless steel selection and modular design ensure system reliability?
- Q4. What are the main industry applications for this pump?
- Conclusion
Vertical Multistage Centrifugal Pumps: Redefining Pressure Standards for Industry and Construction
In the modern fluid transport field, high efficiency and stability are core metrics for evaluating equipment performance. As the "power heart" of fluid systems, vertical multistage centrifugal pumps, with their superior head control capabilities and structural advantages, have become standard equipment in high-rise water supply, industrial circulation, and water treatment processes.
This series of products integrates precision fluid dynamics and materials engineering, specifically designed to handle high pressure, compact spaces, and harsh operating conditions, aiming to provide you with low-energy, long-life pumping solutions.

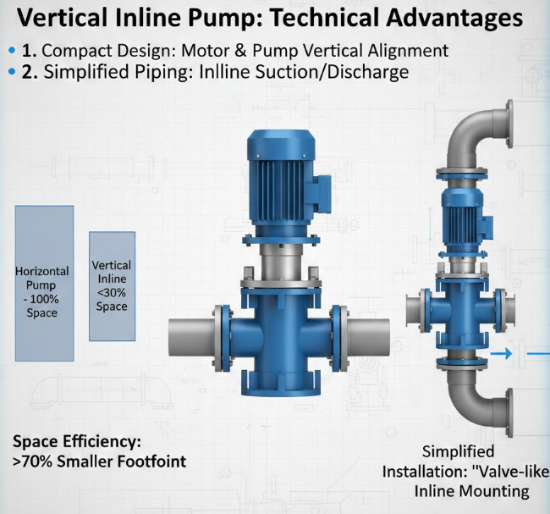

Q1: What are the technical advantages of the vertical structure in actual installation and layout?
A: This pump adopts a vertical direct-coupled design. Its biggest technical feature is that the motor and pump body are arranged vertically, with the inlet and outlet located on the same horizontal centerline (Inline structure). This design has significant advantages in practical applications: First, it saves more than 70% of the machine room floor space compared to horizontal pumps with the same parameters, greatly improving space utilization; second, because the inlet and outlet are on the same straight line, it can be directly connected in series in the pipeline like a valve, significantly simplifying pipeline design and installation.
PUMPWISE Summary: We understand the value of industrial space, and therefore maximize structural compactness in our designs. PUMPWISE vertical pumps are not just equipment, but also flexible space management solutions that can be easily integrated into small equipment skids or complex renovation projects, significantly reducing your civil engineering and installation costs.

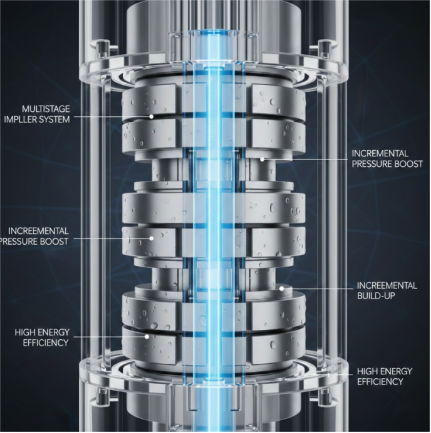

Q2: How does multi-stage impeller tandem improve pumping efficiency and pressure?
A: The core of a vertical multistage centrifugal pump lies in its internal multi-stage impeller system. Unlike a single-stage pump's one-time pressurization, the liquid flows sequentially through multiple impellers connected in series within the pump. Each impeller converts the fluid's kinetic energy and adds pressure. This step-by-step pressurization mechanism allows the pump to output extremely high head while maintaining a small radial dimension. Simultaneously, the optimized impeller hydraulic model effectively reduces internal flow resistance, ensuring a high energy efficiency ratio (EEI) even under high-pressure delivery, thus reducing long-term operating electricity costs.
A: The core of a vertical multistage centrifugal pump lies in its internal multi-stage impeller system. Unlike a single-stage pump's one-time pressurization, the liquid flows sequentially through multiple impellers connected in series within the pump. Each impeller converts the fluid's kinetic energy and adds pressure. This step-by-step pressurization mechanism allows the pump to output extremely high head while maintaining a small radial dimension. Simultaneously, the optimized impeller hydraulic model effectively reduces internal flow resistance, ensuring a high energy efficiency ratio (EEI) even under high-pressure delivery, thus reducing long-term operating electricity costs.
PUMPWISE Summary: Efficiency is the core of PUMPWISE's R&D. We ensure that every arc of the impeller operates at its optimal efficiency point (BEP) through precise calculations. Combined with advanced digital analysis technology, our system effectively reduces system energy consumption, achieving lower long-term operating costs.

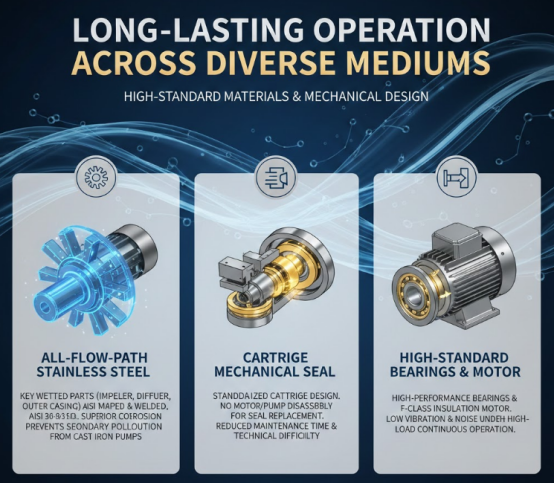

Q3: How do stainless steel selection and modular design ensure system reliability?
A: To ensure long-term operation under various media conditions, this product adopts high-standard materials and mechanical design:
- Full-flow-channel stainless steel: Key flow components (impeller, guide vanes, outer cylinder) are all made of AISI 304 or 316L stainless steel by stamping and welding, providing strong corrosion resistance and avoiding secondary pollution that is common in cast iron pumps.
- Cartridge-type mechanical seal: Adopting a standardized cartridge design, seal replacement does not require disassembly of the motor and pump body, significantly reducing maintenance time and technical difficulty.
- High-standard bearings and motor: Equipped with high-performance bearings and an F-class insulated motor, ensuring low vibration and low noise even under continuous high-load operation.
A: To ensure long-term operation under various media conditions, this product adopts high-standard materials and mechanical design:
- Full-flow-channel stainless steel: Key flow components (impeller, guide vanes, outer cylinder) are all made of AISI 304 or 316L stainless steel by stamping and welding, providing strong corrosion resistance and avoiding secondary pollution that is common in cast iron pumps.
- Cartridge-type mechanical seal: Adopting a standardized cartridge design, seal replacement does not require disassembly of the motor and pump body, significantly reducing maintenance time and technical difficulty.
- High-standard bearings and motor: Equipped with high-performance bearings and an F-class insulated motor, ensuring low vibration and low noise even under continuous high-load operation.
PUMPWISE Summary: Quality is the lifeline of PUMPWISE. Through multiple safety protection logics (such as antifreeze, leak prevention, and error self-checking), we are committed to building a "worry-free" fluid system for you.
Q4. What are the main industry applications for this pump?
A: Thanks to its high-pressure output and pure materials, this series of pumps is widely used in the following core areas:
- Municipal and Building Engineering: Secondary water supply for high-rise buildings, constant pressure water supply systems, and fire-fighting pressure stabilization.
- Industrial Processes: Boiler feedwater systems, cooling circulation systems, industrial cleaning (high-pressure flushing), and machine tool cooling.
- Water Treatment Engineering: High-pressure power supply for ultrafiltration (UF) and reverse osmosis (RO) systems.
- Agriculture and Sprinkler Irrigation: Greenhouse irrigation and landscape fountains requiring long-distance or large-drop delivery.
A: Thanks to its high-pressure output and pure materials, this series of pumps is widely used in the following core areas:
- Municipal and Building Engineering: Secondary water supply for high-rise buildings, constant pressure water supply systems, and fire-fighting pressure stabilization.
- Industrial Processes: Boiler feedwater systems, cooling circulation systems, industrial cleaning (high-pressure flushing), and machine tool cooling.
- Water Treatment Engineering: High-pressure power supply for ultrafiltration (UF) and reverse osmosis (RO) systems.
- Agriculture and Sprinkler Irrigation: Greenhouse irrigation and landscape fountains requiring long-distance or large-drop delivery.
PUMPWISE Summary: We not only manufacture pumps, but also provide customized pump set solutions based on industry pain points, ensuring superior performance at every key application point.
Conclusion:
Vertical multistage centrifugal pumps are not only pressure producers, but also system energy efficiency optimizers. Through a highly integrated structure and precision stainless steel craftsmanship, they provide a simple yet powerful answer to complex fluid challenges. PUMP WISE consistently adheres to stringent industrial standards to ensure that every pump operates smoothly in your production line or water supply system.
