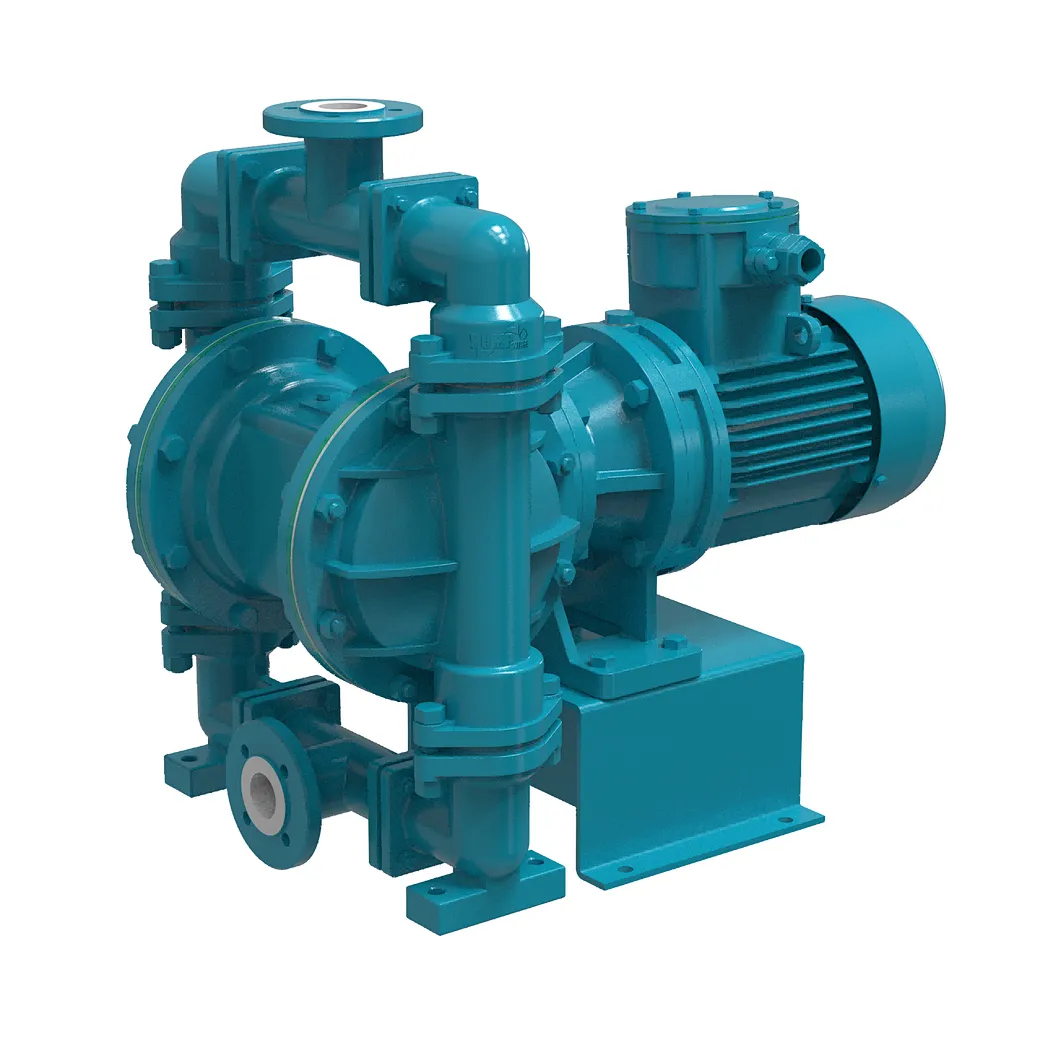

DN15-DN80 Electric Diaphragm Pump

Model NO. PWSDBY

Flow Range：0.5-30m³/h
Head Range：20-80m
Motor Power：0.37-15kW
Inlet/Outlet Range：DN15-DN80

Quantity

The PWS Electric Diaphragm Pump is a sealless, reciprocating pump driven by an electric motor, designed to handle high-viscosity, abrasive, or hazardous fluids (e.g., 98% sulfuric acid, honey, sewage sludge) through diaphragm pulsation. Unlike centrifugal pumps, its electric double diaphragm pump mechanism enables bidirectional suction/discharge, achieving 3-meter self-priming with zero risk of leakage – critical for chemical transfer or food-grade applications requiring hygienic standards.

Structural Advantages of the Electric Double Diaphragm Pump

Transporting Various Media

It can transport all kinds of highly toxic, flammable, volatile liquids, strong acids, strong alkalis, highly corrosive liquids, and high temperature media. It can also transport liquids with particles, and particles and mud with a diameter of less than 10 mm can pass effortlessly.

Good Sealing

Since the diaphragm separates the transported medium and the transmission mechanical parts, the medium will not leak out; and the electric diaphragm pump itself has no shaft seal, which greatly extends its service life.

Optional Diaphragm Material

According to different media, the diaphragm can be divided into chloroprene rubber, fluororubber, nitrile rubber, polytetrafluoroethylene, Teflon (F46), etc., which can meet the requirements of different customers.

How the Electric Diaphragm Water Pump Works

Motor Drive

The geared motor converts rotational energy into linear motion via a crankshaft and reversing linkage.

Diaphragm Actuation

Diaphragms reciprocate, creating vacuum/pressure cycles in the pump chamber.

Valve Control

Four ball check valves alternate opening/closing, enabling bidirectional flow for scenarios like tanker bilge clearing or firefighting water transfer.

Dry-Run Protection

Automatically shuts down if fluid supply is interrupted, preventing diaphragm damage.

Key Applications of the Electric Diaphragm Pump

Chemical Industry

Can be used to transport corrosive media to the reactor, such as strong acid, strong alkali, organic solvent, corrosive liquid, etc.

Pharmaceutical Industry

Used to transport pharmaceutical raw materials to the production line, such as liquid medicine, injection, disinfectant, etc.

Environmental Protection

Used for the transportation and treatment of sewage and waste gas, such as sludge, wastewater, and waste liquid transportation, it is expanding its market share in environmental protection, wastewater treatment, construction, sewage, and fine chemicals.

Service Assurance

Accurate demand matching

Free on-site demand analysis, customized flow, pressure and piping configuration scheme;

Rapid delivery response

Standardized module design, delivery cycle shortened by 30%, emergency project support expedited processing;

Flexible warranty policy

1 year warranty for the whole machine, 2 years extended warranty for non-standard customized parts, regular maintenance and fault fast response service.

In the innovative development of fluid transportation technology, the optimization of the technical specifications of the electric diaphragm pump, as the core equipment, directly determines the reliability and efficiency of the pump set under complex working conditions. Among them, the electric double diaphragm pump is designed to operate alternately with double diaphragms, significantly improving flow stability and self-priming ability, especially suitable for high viscosity and particle containing media; The electric diaphragm water pump has optimized its sealing structure and material corrosion resistance for water treatment scenarios, ensuring leak free delivery under low head and high flow conditions. Both adopt electric drive technology to eliminate the risk of mechanical seal leakage through non-contact transmission, and support wide range adaptation of medium temperature, pressure, and solid particle passing capacity, becoming a key solution for safe and efficient fluid transportation in the fields of chemical engineering, environmental protection, and water treatment.

In the precise construction of fluid conveying equipment, the core component design of electric diaphragm pump directly determines its performance boundary and applicable scenarios. As a representative branch in this field, the electric double diaphragm pump achieves a dual breakthrough in flow pulsation suppression and self-priming efficiency through the coordinated reciprocating motion of the double diaphragm components; The electric diaphragm water pump optimizes the diaphragm material and valve body structure based on the characteristics of water-based media, balancing wear resistance and low energy consumption requirements. Whether it is a single diaphragm or double diaphragm configuration, its core components such as elastic diaphragms, ball/disc valve assemblies, drive motors, and linkage mechanisms need to strike a balance between chemical corrosion resistance, fatigue resistance, and high sealing performance to cope with the complex transportation challenges from clean water to high viscosity liquids, from clean media to solid particles. This article will delve into the material selection, structural characteristics, and impact mechanism of these key components on the overall performance of the pump unit.

In the field of industrial automation and fluid control, electric diaphragm pumps, especially electric double diaphragm pumps and electric diaphragm water pumps, are widely used in industries such as chemical engineering, environmental protection, water treatment, and food processing due to their strong self-priming ability, corrosion resistance, dry operation, and leak free characteristics. However, the installation process of such pumps must strictly follow technical specifications, from foundation fixation, pipeline connection, electrical wiring to commissioning and operation. Each link must ensure that the diaphragm component is evenly stressed, the pipeline is stress free, and the electrical safety is reliable. Otherwise, it may cause problems such as diaphragm damage, flow fluctuations, or motor overload.

In the design and optimization of fluid transport systems, the performance curve of electric diaphragm pumps is the core basis for evaluating their operational efficiency and applicability. As a typical branch of this field, the electric double diaphragm pump, with the characteristic of alternating operation of the double diaphragms, typically exhibits a wide flow head range and low pulsation characteristics in its performance curve, making it particularly suitable for chemical and painting scenarios that require stable flow output; The design of electric diaphragm water pump is optimized for water-based media, which enables its performance curve to exhibit higher hydraulic efficiency and energy consumption advantages under low head and high flow conditions. Whether it is a single diaphragm or double diaphragm configuration, its performance curve is influenced by the synergy of diaphragm elasticity, valve body response speed, and driving motor power. By analyzing the key parameters in the curve, engineers can accurately match process requirements, avoid problems such as insufficient flow, energy waste, or premature diaphragm failure caused by selection deviations, and maximize the reliability and economy of electric diaphragm pumps under complex working conditions.
