DN20-DN500 ISW Horizontal Pipeline Centrifugal Pump
PWSISW
Flow Range：2-2000 m³/h
Head Range:8-150m
Inlet/Outlet Range:DN20-DN500
Motor Power:1.1-90 kW
Head Range:8-150m
Inlet/Outlet Range:DN20-DN500
Motor Power:1.1-90 kW
Quantity
Designed to address the core demands of efficient and stable fluid transfer in industrial and civil applications, the ISW horizontal pipeline pump centrifugal pump by PWS combines a direct-connection integrated design with robust performance. Ideal for pipeline systems ranging from DN20 to DN500, this satisfactory pipeline pump delivers flow rates of 2–2000 m³/h and heads up to 150m, making it a versatile pump centrifugal solution for water circulation, HVAC, and irrigation systems. Its compact structure, energy efficiency, and corrosion-resistant cast iron construction ensure durability in demanding environments. As a reliable centrifugal water pump for irrigation, it excels in agricultural and municipal projects, offering seamless operation with minimal maintenance.

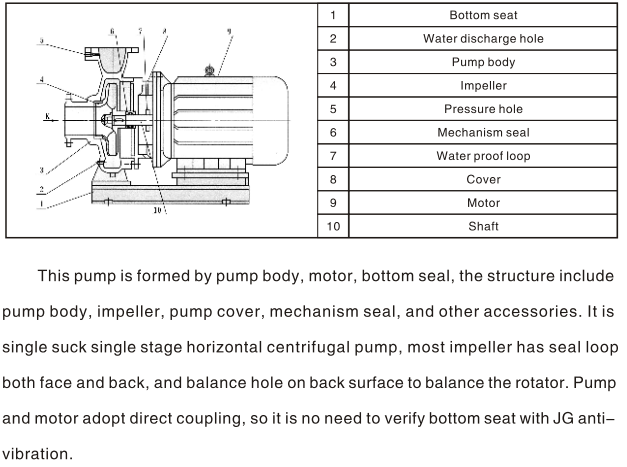

Structural Design
- Horizontal integrated architecture
The satisfactory pipeline pump body and the motor are directly connected through coaxial, eliminating complex transmission parts, compact structure and 40% reduction in floor space;
- Coaxial layout of inlet and outlet
The horizontal inlet and outlet are located in the same straight line, directly embedded in the pipeline system, reducing elbow loss and improving installation convenience;
- High compatibility and adaptability
The through diameter covers DN20-DN500, adapting to the diversified needs from small branch lines to main pipelines.
High-efficiency Operation
- Centrifugal force drive
The motor drives the impeller to rotate at high speed, and the liquid is pressed outward from the center under the action of centrifugal force, which builds up the pressure quickly and improves the conveying efficiency by 25%;
- Wide range performance coverage
Flow rate of 2-2000m³/h, head of 8-150m, meeting the needs of the whole scenario from low-pressure irrigation to high-pressure water supply;
- Energy-saving motor configuration
Power 1.1-90kW, with high-efficiency motors (optional IE3/IE4 grade), reducing comprehensive energy consumption by 15%-30%.
Maintenance Innovation
- Quick overhaul technology
Adopting back-opening structure, the impeller, mechanical seal and other internal components can be directly accessed without dismantling the inlet and outlet pipelines, which reduces the maintenance time by 60%;
- Highly durable material
The overflow parts are made of cast iron/stainless steel, which are corrosion and cavitation resistant and have a long service life of more than 10 years.
Application Scenarios
- Municipal Water
Water plant pressurized delivery, secondary water supply for high-rise buildings, urban drainage and flood prevention;
- Industrial circulation
Factory cooling water system, boiler water supply, production line cleaning water circulation;
- Agriculture and forestry environmental protection
Field irrigation, garden spraying, sewage treatment plant backflow lifting;
- Emergency protection
Fire-fighting water supply system, ship ballast water deployment, commercial complex HVAC cycle.
