DN25-DN200 ISG Cast Iron Vertical Pipeline Centrifugal Pump
Head Range：5-150m
Motor Power：0.75-150kW
Inlet/Outlet Range：DN25-DN200
Submersible Depth：0.5-5m
What Is Cantrifugal Pump
- Working Principle
Centrifugal pumps rely on centrifugal force to transport liquids. Before starting, the pump body and the water inlet pipe need to be filled with water to form a vacuum state. When the impeller rotates rapidly, the blades drive the liquid to rotate, and the liquid is thrown out of the impeller under the action of centrifugal force, forming a low-pressure area in the pump. Under the action of atmospheric pressure, the external liquid enters the water inlet pipe through the pipe network, forming a continuous pumping cycle. - Main Structure

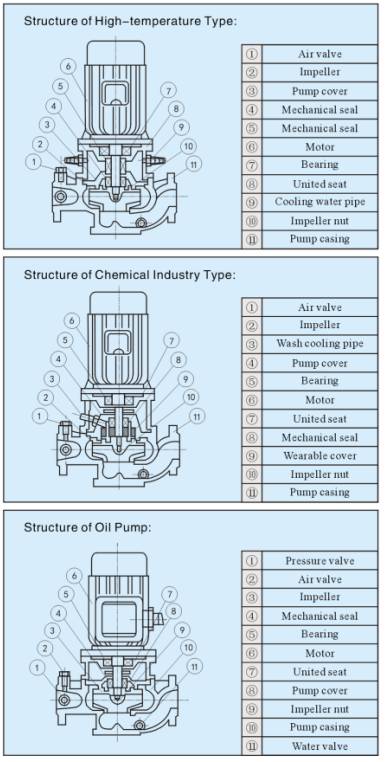

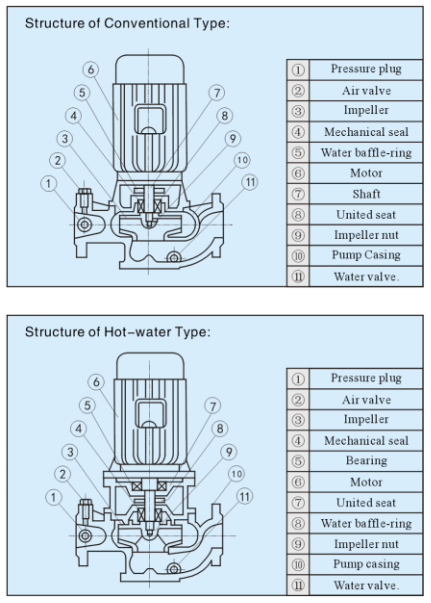

It includes impeller, pump body (pump casing), pump shaft, bearing, sealingring and stuffing box (or mechanical sealing device), among which the impeller is the core working component, the pump body plays a supporting and fixing role, the pump shaft transmits the motor power, the bearing supports the pump shaft and reduces friction, the sealing ring is used to reduce the internal leakage between the impeller and the pump casing, and the stuffing box or mechanical sealing device prevents liquid leakage and air from entering the pump.
Pipeline Pump Feature
Impeller Rotation: The motor-driven impeller generates centrifugal force, accelerating fluid outward.
Pressure Conversion: Kinetic energy converts to pressure in the volute casing, delivering stable flow (up to 1,200 m³/h).

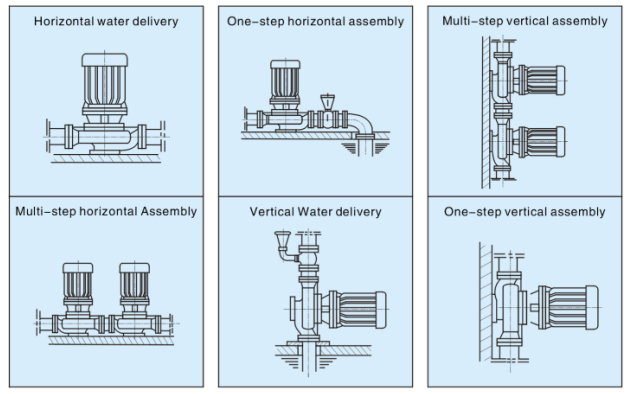

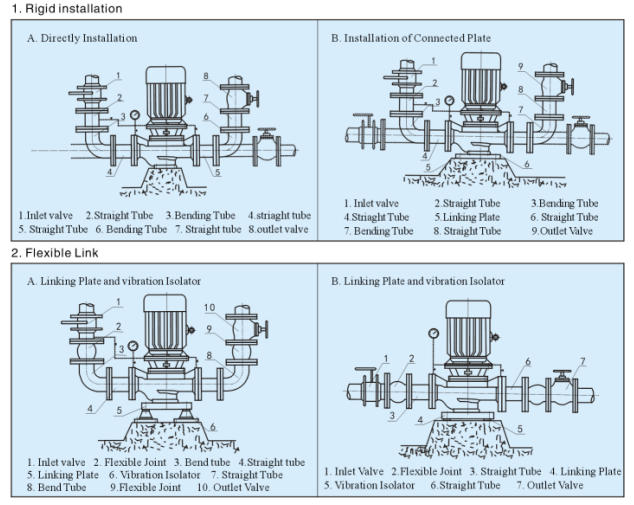

Pipeline Integration: Vertical coaxial ports align with piping systems, minimizing turbulence and energy loss.

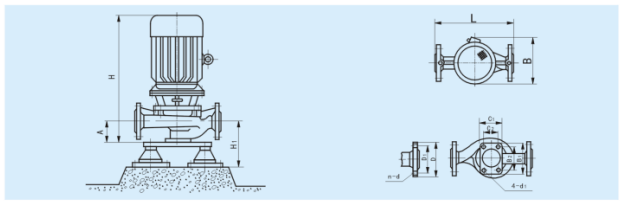

Compact Design: The pump body is a vertical structure, the inlet and outlet diameters are the same and located on the same center line, similar to the valve installed in the pipeline, with a small footprint, suitable for occasions with limited space
Key Applications of the Pipeline Pump
Used in secondary water supply systems for high-rise residential and commercial buildings, the vertical design saves machine room space and is directly connected to the pipeline to achieve efficient pressurization.
Fire System Water Supply
As a fire-fighting pressure-stabilizing pump or sprinkler pump, the vertical structure is easy to integrate with the fire-fighting pipeline to ensure a quick response in case of fire.
Cooling Water Circulation
Used for circulating water transportation of equipment such as factory cooling towers and heat exchangers. The vertical design reduces the floor space and adapts to narrow spaces.
Service & Reliability
- Accurate demand matching
Free on-site demand analysis, customized flow, pressure and piping configuration scheme;
- Rapid delivery response
Standardized module design, delivery cycle shortened by 30%, emergency project support expedited processing;
- Flexible warranty policy
1 year warranty for the whole machine, 2 years extended warranty for non-standard customized parts, regular maintenance and fault fast response service.
