DN20-DN500 ISWP Stainless Steel Horizontal Pipeline Centrifugal Pump
PWSISWP

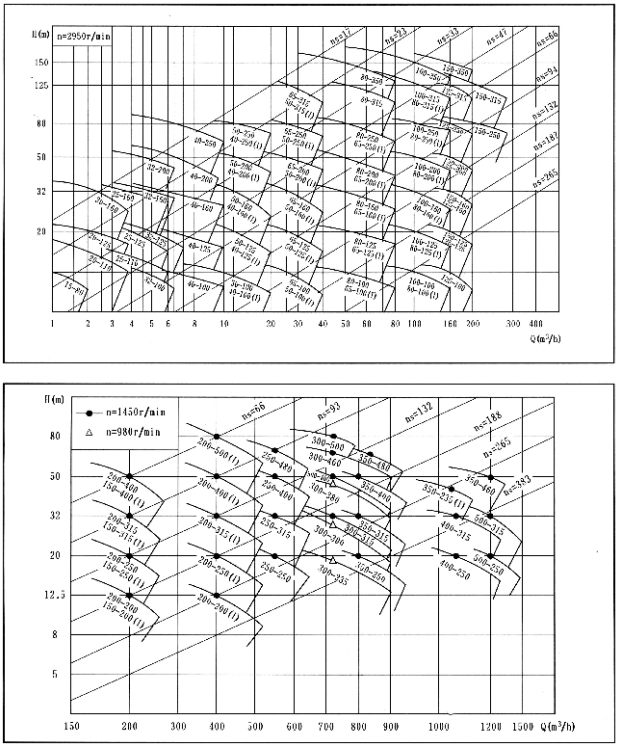

Flow Range：2-2000 m³/h
Head Range:8-150m
Inlet/Outlet Range:DN20-DN500
Motor Power:1.1-90 kW
Head Range:8-150m
Inlet/Outlet Range:DN20-DN500
Motor Power:1.1-90 kW
Quantity
Engineered to meet industrial and civil fluid transport demands for efficiency and reliability, the stainless steel centrifugal pump (ISWP horizontal pipeline model) integrates a direct-connection design, supporting DN20-DN500 pipelines with flows of 2-2000m³/h and heads up to 150m. As a centrifugal stainless steel pump, it combines compactness, energy efficiency, and corrosion-resistant durability, making it ideal for water circulation systems. Its clog-resistant, streamlined structure ensures stable performance in demanding applications, solidifying its role as a high-performance pump centrifugal solution.

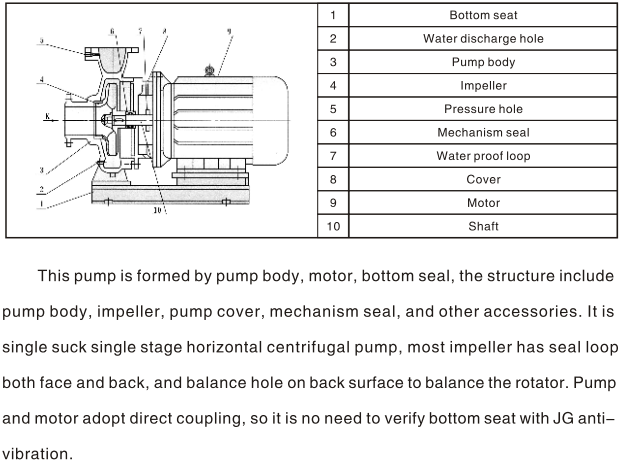

Structural Design
- Horizontal integrated architecture
Thecentrifugal stainless steel pump body and the motor are directly connected through coaxial, eliminating complex transmission parts, compact structure and 40% reduction in floor space;
- Coaxial layout of inlet and outlet

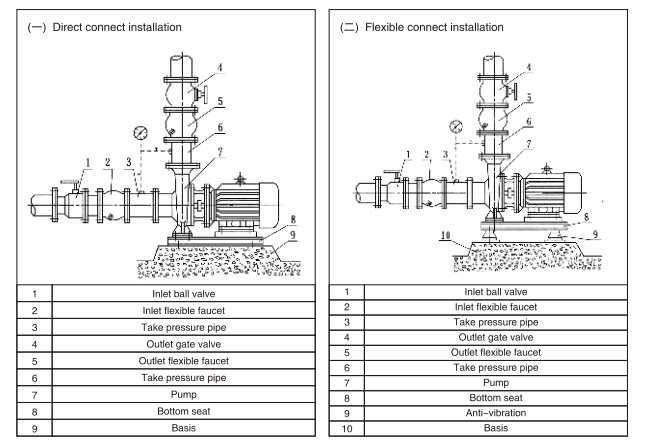

The horizontal inlet and outlet are located in the same straight line, directly embedded in the pipeline system, reducing elbow loss and improving installation convenience;
- High compatibility and adaptability
The through diameter covers DN20-DN500, adapting to the diversified needs from small branch lines to main pipelines.
High-efficiency Operation
- Centrifugal force drive
The motor drives the impeller to rotate at high speed, and the liquid is pressed outward from the center under the action of centrifugal force, which builds up the pressure quickly and improves the conveying efficiency by 25%;
- Wide range performance coverage
Flow rate of 2-2000m³/h, head of 8-150m, meeting the needs of the whole scenario from low-pressure irrigation to high-pressure water supply;
- Energy-saving motor configuration
Power 1.1-90kW, with high-efficiency motors (optional IE3/IE4 grade), reducing comprehensive energy consumption by 15%-30%.
Maintenance Innovation
- Quick overhaul technology
Adopting back-opening structure, the impeller, mechanical seal and other internal components can be directly accessed without dismantling the inlet and outlet pipelines, which reduces the maintenance time by 60%;
- Highly durable material
The overflow parts are made of cast iron/stainless steel, which are corrosion and cavitation resistant and have a long service life of more than 10 years.
Application Scenarios
- Municipal Water
Water plant pressurized delivery, secondary water supply for high-rise buildings, urban drainage and flood prevention;
- Industrial circulation
Factory cooling water system, boiler water supply, production line cleaning water circulation;
- Agriculture and forestry environmental protection
Field irrigation, garden spraying, sewage treatment plant backflow lifting;
- Emergency protection
Fire-fighting water supply system, ship ballast water deployment, commercial complex HVAC cycle.
