DN25-DN250 Corrosion Wear-Resisting Mortar Pump
PWSUHB
Flow Range：3-600 m³/h
Head Range：5-40 m
Motor Power：0.75-132
Inlet/Outlet Range：DN25-DN250
Head Range：5-40 m
Motor Power：0.75-132
Inlet/Outlet Range：DN25-DN250
Quantity
The UHB corrosion-resistant and wear-resistant mortar pump has become the preferred equipment for conveying highly corrosive and wear-resistant media due to its superior corrosion resistance, wear resistance, and efficient sealing design. It is widely used in mining, metallurgy, chemical industry, environmental protection and other fields, especially in wet smelting, sewage treatment, coal slurry transportation and other scenarios where it performs outstandingly. Compared with traditional mortar pumps, the UHB pump launched by PWS has significant advantages in material, performance, and maintenance costs, and is a model in the industrial field.
Product Features

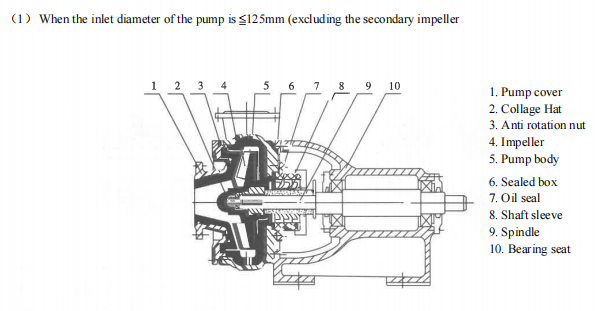

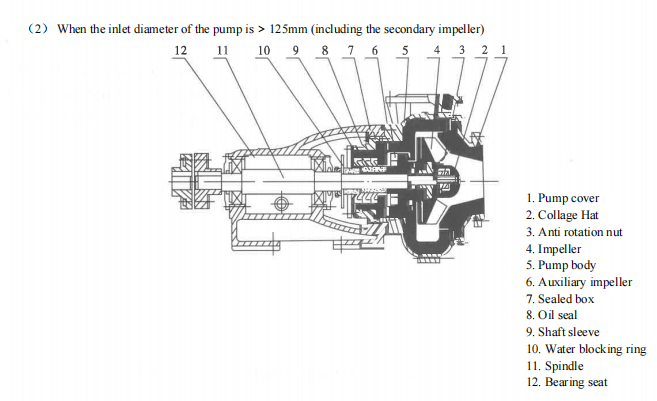

Structural Characteristics
- Cantilever structure: reduces pressure at the shaft seal and lowers the risk of leakage.
- Semi open impeller: enhances the passability inside the flow channel and reduces the risk of blockage.
- The lining layer has good resistance to thermal deformation: it is resistant to cracking and detachment, and has a wide range of operating temperatures

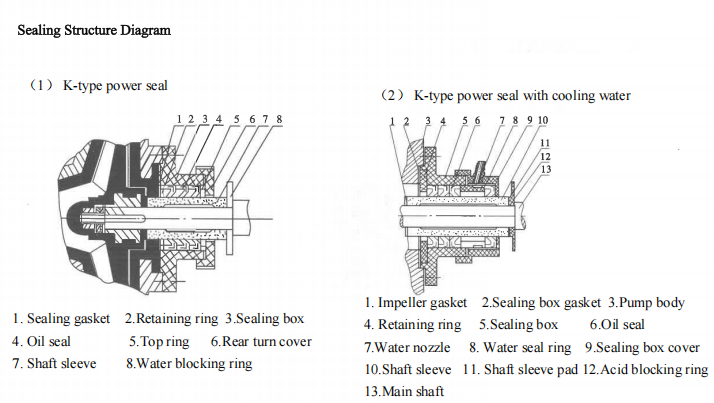

Advanced Sealing Technology
- The K-type power seal adopts a combination of secondary impeller and parking seal, which can maintain negative pressure during operation and prevent medium leakage; Automatically switch to positive pressure sealing during shutdown to ensure safety and reliability.
Products Advantages
Excellent Corrosion Resistance Performance
UHB pumps are made of high-performance materials such as steel lined ultra-high molecular weight polyethylene or fluoroplastics, which can operate stably for a long time in corrosive media such as strong acids, alkalis, and salts.
Excellent Wear Resistance
Can easily handle the transportation of media containing solid particles, such as slurry, mortar, etc. This makes UHB pumps particularly outstanding in industries such as mining, building materials, and coal.
Efficient Design
The UHB pump adopts a cantilever single-stage single suction centrifugal pump structure, with a compact design and high efficiency. The impeller and flow channel have been optimized to reduce energy consumption and improve conveying efficiency, making it suitable for high flow and high head conditions.
UHB pumps are made of high-performance materials such as steel lined ultra-high molecular weight polyethylene or fluoroplastics, which can operate stably for a long time in corrosive media such as strong acids, alkalis, and salts.
Excellent Wear Resistance
Can easily handle the transportation of media containing solid particles, such as slurry, mortar, etc. This makes UHB pumps particularly outstanding in industries such as mining, building materials, and coal.
Efficient Design
The UHB pump adopts a cantilever single-stage single suction centrifugal pump structure, with a compact design and high efficiency. The impeller and flow channel have been optimized to reduce energy consumption and improve conveying efficiency, making it suitable for high flow and high head conditions.
Application Scenarios
Chemical Industry
- Medium transportation: sulfuric acid, hydrochloric acid, alkaline clear solution or slurry.
- Typical applications: production of titanium dioxide and iron red powder, production of dyes and pigments, non-metallic mineral processing, etc.
- Media transportation: various acid liquids, corrosive slurries, slurries, electrolytes, wastewater, etc. from wet smelting.
- Typical applications: Smelting process of metals such as lead, zinc, gold, silver, copper, manganese, cobalt, rare earths, etc.
Service Assurance
- Precise Demand Matching
Free on-site condition assessment with customized solutions (flow rate, head, and piping configurations precisely tailored to operational needs).
- Rapid Delivery Response
Standardized modular design shortens delivery cycles by 30%, with priority processing for emergency project requirements.
- Flexible Warranty Policy
1-year warranty for the entire machine, extended to 2 years for non-standard customized components, complemented by scheduled proactive maintenance and a 2-hour fault response guarantee.
