DN40 -DN250 D Series Multi-Stage Centrifugal Pump
PWSD
Flow Range：3.75-450 m³/h
Head Range：73.5-1000 m
Motor Power ：5.5 KW-10 KV
Inlet/Outlet Range ：DN40 -DN250
Head Range：73.5-1000 m
Motor Power ：5.5 KW-10 KV
Inlet/Outlet Range ：DN40 -DN250
Quantity
The D-type multi-stage horizontal centrifugal pump has become the preferred equipment in industrial, municipal, mining and other fields due to its advantages of high efficiency, energy saving, stable operation, and reliable sealing. As a professional centrifugal pump manufacturers, PWS is committed to providing customized solutions to meet the needs of customers in different working conditions. Whether it is horizontal centrifugal pump installation or special medium transportation, D-type pump centrifugal can provide reliable performance, helping customers reduce costs and increase efficiency.
Product Features
Compact Structure
- The horizontal multi-stage centrifugal pump is designed with a small footprint, making it easy to install in confined spaces.

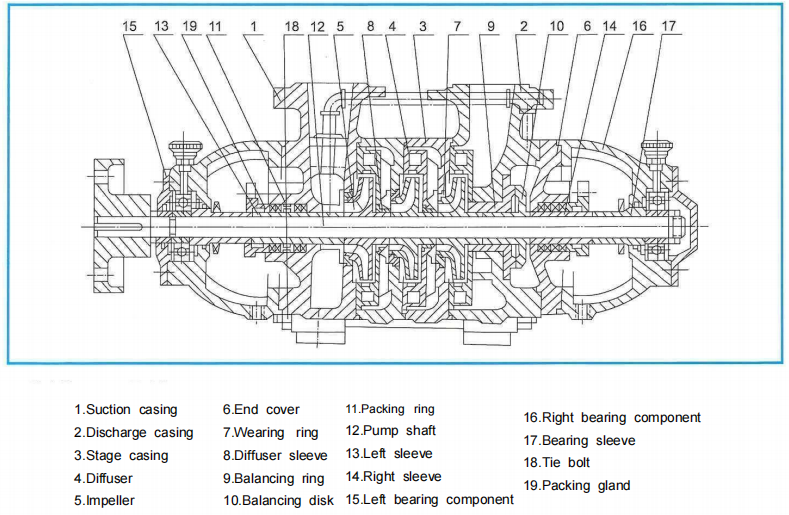

- Segmented pump body, connected by tightening bolts, easy disassembly and assembly, low maintenance cost.
Low noise
- Optimize hydraulic design, reduce hydraulic shock, low noise, and comply with industrial noise control standards.
- Equipped with shock-absorbing pads and elastic couplings to further reduce vibration transmission.
Intelligent Monitoring
- Optional temperature and pressure sensors, real-time monitoring of bearing temperature and medium pressure, supporting remote data transmission.
- Equipped with a frequency conversion control cabinet, it achieves intelligent regulation of flow and pressure, with significant energy-saving effects.
Products Advantages
Efficient and Energy-Saving
- Adopting advanced hydraulic model design, optimizing the flow channel structure, reducing energy loss, and improving efficiency by 10% -15% compared to traditional pumps.
- Compliant with international energy efficiency standards, suitable for long-term operation in industrial scenarios, reducing energy consumption costs.
Stable Operation
- Modular design, with precision casting technology used for core components such as impellers and guide vanes.
- Fully enclosed shaft design, avoiding medium corrosion, extending bearing life, and reducing maintenance frequency.
Reliable Sealing
- Optional dual end mechanical seals or flushing solutions are available to meet the transportation needs of corrosive or particulate media.
Application Scenarios
Industrial Water Supply
Suitable for circulating water pressurization, boiler feedwater, and process water supply in steel plants, chemical plants, and power plants.
Municipal Engineering
Boosting water supply for urban high-rise buildings, long-distance water delivery, garden irrigation, and fire protection systems.
Mine Drainage
The drainage and seepage treatment of coal and metal mine tunnels are suitable for mine water containing small amounts of particles.
HVAC Systems
Central air conditioning cold and hot water circulation, floor heating system pressurization, providing stable flow and pressure.
Suitable for circulating water pressurization, boiler feedwater, and process water supply in steel plants, chemical plants, and power plants.
Municipal Engineering
Boosting water supply for urban high-rise buildings, long-distance water delivery, garden irrigation, and fire protection systems.
Mine Drainage
The drainage and seepage treatment of coal and metal mine tunnels are suitable for mine water containing small amounts of particles.
HVAC Systems
Central air conditioning cold and hot water circulation, floor heating system pressurization, providing stable flow and pressure.
Service Assurance
- Precise Demand Matching
Free on-site condition assessment with customized solutions (flow rate, head, and piping configurations precisely tailored to operational needs).
- Rapid Delivery Response
Standardized modular design shortens delivery cycles by 30%, with priority processing for emergency project requirements.
- Flexible Warranty Policy
1-year warranty for the entire machine, extended to 2 years for non-standard customized components, complemented by scheduled proactive maintenance and a 2-hour fault response guarantee.
