DN50-DN300 Horizontal Electric End Suction Bare Shaft Fire Pump

Model NO. PWSIS

DN Range of Suction Pipe: 50-300 mm (2''-12'')
DN Range of Discharing Pipe: 32-250 mm (1.5''-10'')
Flow Capacity Range: 0-1500m3/h
Head/Pressure Range: 0-164 m
Power Range: 0.75-315 Kw

Quantity

As urbanization accelerates, fire safety demands reliable solutions like the PWSIS Series Horizontal Electric End Suction Bare Shaft Fire Pump. Engineered as a robust horizontal centrifugal pump, it integrates end suction fire pump negative suction technology with negative suction capability to ensure uninterrupted performance in critical scenarios. Compliant with international standards, this horizontal centrifugal pump combines high-efficiency operation, minimal maintenance, and extended durability, making it ideal for commercial complexes, industrial plants, and public infrastructure. Its anti-clog design and stable pressure output deliver 24/7 protection for firefighting systems, solidifying its role as the backbone of modern disaster response.

Working Principle

Horizontal electric end suction bare shaft fire pump adopts single-stage centrifugal design, through the motor-driven impeller rotating at high speed, the kinetic energy of water will be converted into pressure energy, to realize fast and stable high-pressure water transmission.

The unique “end suction” structure optimizes water intake efficiency, while the “bare shaft” design simplifies maintenance and ensures fast response in emergency conditions.

Durability & Adaptability

Efficient and stable: flow range covers 0-1500m³/h, head up to 164 meters, meet the fire fighting needs of high-rise buildings and large facilities.
Ultimate reliability: cast iron or stainless steel pump body, corrosion-resistant, abrasion-resistant, adapt to harsh environments; standard with double sealing system to eliminate the risk of leakage.
Intelligent compatibility: support and fire alarm system linkage, optional frequency control, to achieve optimization of energy consumption and precise pressure adjustment.
Convenient maintenance: modular design, bare shaft structure for easy disassembly and maintenance, reducing downtime.

Application Scenarios

High-rise buildings
Provide stable high-pressure water supply for ultra-high-rise buildings to ensure the immediate response of sprinkler systems and fire hydrants.
Petrochemical industry
Corrosion-resistant materials are suitable for chemical plants, storage tanks, fire cooling and emergency fire extinguishing.
Transportation hubs
Fire protection system integration in subway stations, airports and other places to ensure high-flow water delivery capacity.
Data centers
Tier IV compliant redundant design provides uninterrupted protection for critical facilities.

Service Assurance

Precise Demand Matching

Free on-site condition assessment with customized solutions (flow rate, head, and piping configurations precisely tailored to operational needs).

Rapid Delivery Response

Standardized modular design shortens delivery cycles by 30%, with priority processing for emergency project requirements.

Flexible Warranty Policy

1-year warranty for the entire machine, extended to 2 years for non-standard customized components, complemented by scheduled proactive maintenance and a 2-hour fault response guarantee.

PWS horizontal centrifugal pump adopts an end suction fire pump negative suction design and is a high-performance fire pump product specially developed for fire protection systems. This negative pressure fire pump has excellent suction capacity and can maintain stable water pressure output under various working conditions. The pump body is made of high-strength cast iron material and equipped with a large flow impeller design to ensure reliable fire water supply in emergency situations. The product achieves efficient and energy-saving operation by optimizing the hydraulic model, fully meeting the strict requirements of the fire protection system.

The core components of this horizontal centrifugal pump include precision cast bronze impellers, high-strength alloy steel shafts, heavy-duty mechanical seals, and long-lasting lubrication bearing systems. As a professional end suction fire pump, its unique inlet design ensures excellent negative pressure suction performance. All components have undergone strict material testing and dynamic balance testing to ensure reliable operation in case of fire emergencies. The pump body adopts a modular design, which facilitates quick maintenance and component replacement.

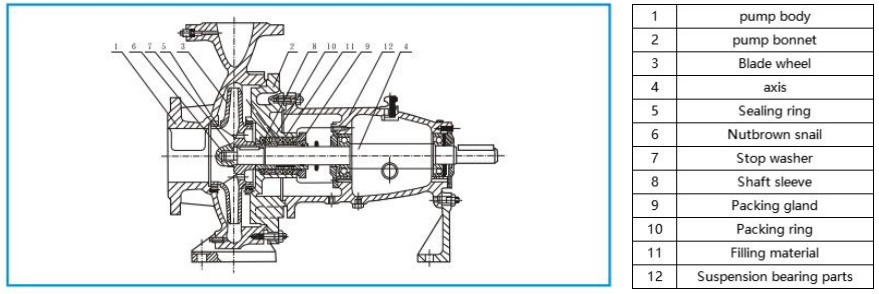

Pump main structure includes pump body, pump cover, impeller, shaft, sealing ring, shaft sleeve and suspension bearing components. Its core feature is the back-opening structure (the pump body and pump cover are separated from the back of the impeller), which significantly simplifies the maintenance process, without disassembling the pipeline or motor, and only need to disconnect the coupling to remove the rotor parts for maintenance.
The pump casing constitutes the working chamber and the rotor consists of the impeller, shaft and rolling bearings, with the suspension bearings carrying the radial and axial loads. The axial force balance is realized by the sealing rings before and after the impeller and the balance hole in the rear cover plate, and the rear sealing ring is omitted in some low axial force models. The shaft sealing system uses a combination of packing gland, packing ring and packing to prevent leakage; if the impeller is equipped with balancing holes (back pressure is higher than atmospheric pressure), no packing ring is required. The shaft sleeve and O-ring protect the shaft body and seal it.
The pump is directly connected to the motor through a flexible coupling and defaults to clockwise rotation (drive end view). The design combines high efficiency, ease of maintenance and stability, making it suitable for industrial applications where frequent maintenance is required or space is limited.

This series of end suction fire pump negative suction adopts a horizontal installation method, and the installation foundation needs to be flat and firm. Special attention should be paid to the configuration of the inlet pipeline during installation to ensure sufficient straight pipe sections to meet the requirements of negative pressure suction. Before debugging, the motor direction must be checked, and it is recommended to install protective devices such as pressure switches and pressure relief valves. This horizontal centrifugal pump should be installed in a well ventilated location that is easy to operate and maintain, and regularly tested for operation.

1. Installation and calibration steps
a. Clean the base from oil and place it on the foundation.
b.Use level meter to calibrate the level of the base, and allow to level it with pad iron.
c. Pour cement to fix the base and ground bolt holes, and check the tightness after the cement dries and solidifies.
d. Clean the base, pump foot and motor foot contact surface, install the pump and motor on the base.
e. Ensure that the coupling gap is uniform, the pump shaft and the motor shaft centerline (available thin shims to adjust the concentricity).
f. Measurement standards: coupling outer circle up and down / left and right deviation ≤ 0.1mm, end face gap circumferential maximum difference ≤ 0.3mm.

2.Installation instructions
a. The installation height of the pump and the length/diameter of the pipeline should be determined by hydraulic calculation, so as to reduce the local resistance loss such as elbow.
b. Priority should be given to the use of large pipe diameters, and the pipeline should be load-bearing with independent bracket, and external force is strictly prohibited to be applied to the pump body.
c. If a check valve is to be installed in the discharge line, it should be placed outside the gate valve to avoid water hammer damage to the pump body.
d. Before operation, make sure all bolts are tight, coupling alignment is qualified, and no pipeline stress is transferred to the pump body.

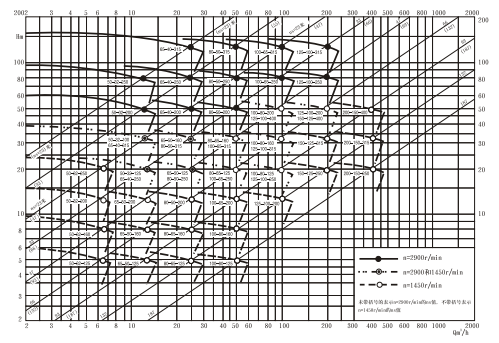

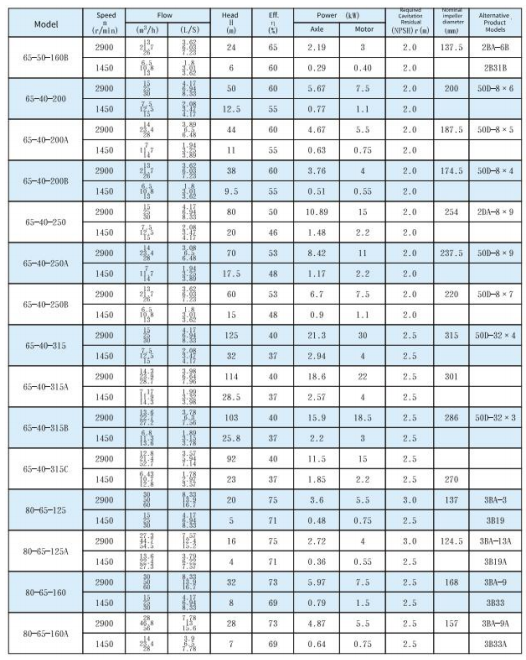

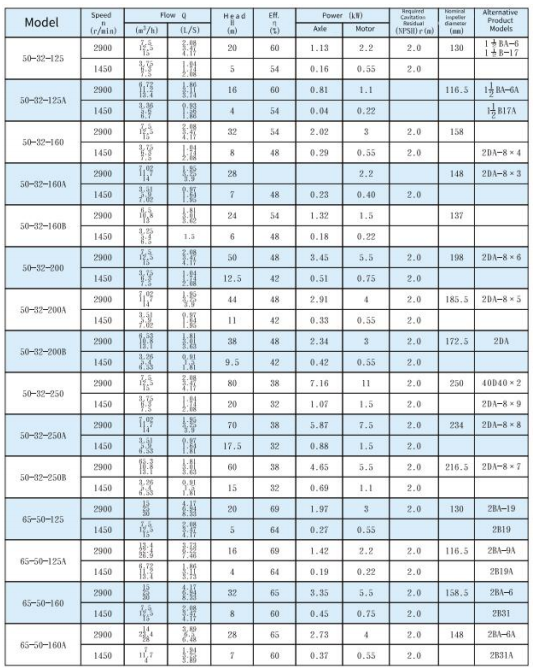

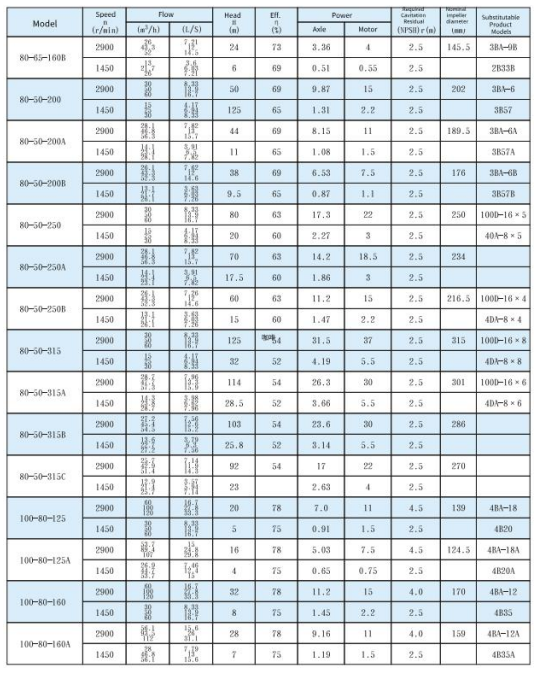

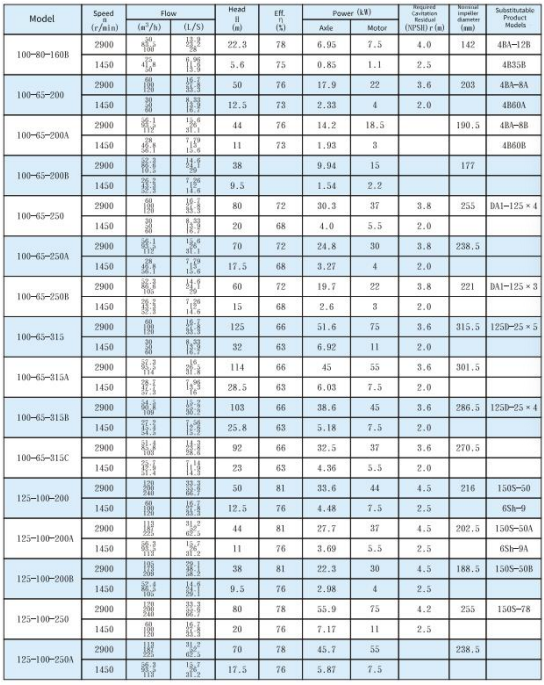

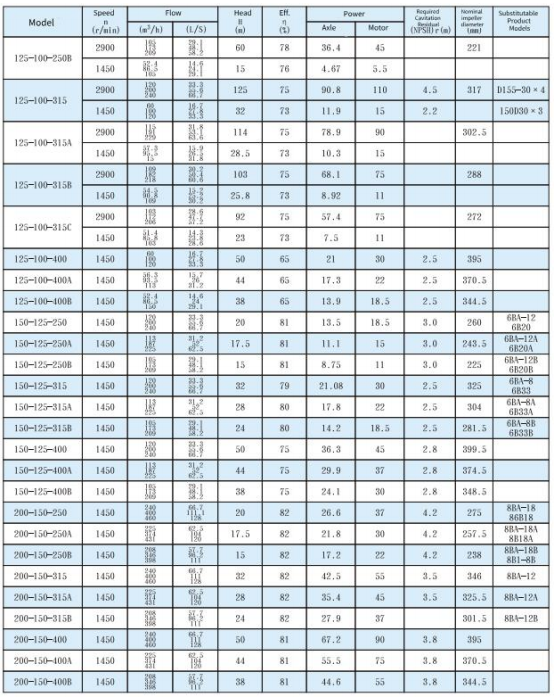

The performance curve diagram of the product provides a detailed display of the working characteristics of this end suction fire pump. The curve clearly reflects the pressure changes at different flow rates, helping users understand the optimal working range of the horizontal centrifugal pump. By analyzing the curve, the pipeline configuration of the fire protection system can be optimized to ensure that this end suction negative pressure fire pump can achieve maximum efficiency in emergency situations.
